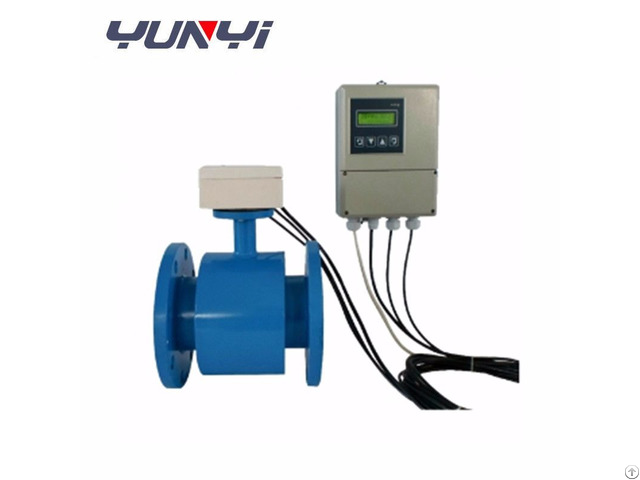

Magentic Flow Meter Water Milk Flowmeter - China
price: 300.00 Dollar US$
Technical Performance Parameters
Caliver
DN3~DN3000mm
Nominal Pressure
0.6~4.0MPa(special pressure can be made to)
Accuracy
0.5%, 0.3%or0.2% are selectable
Liner material
Teflon, PFA, F46, Neoprene, Polyurethane
Electrode Type
General type, scraper type and replaceable type
Electrode material
Stainless steel SUS316, Hastelloy C, Titanium, Tantalum Platinum-iridium, Stainless steel covered with tungsten carbide
Mediem temperature
Integrate type
-20C~+60C
Remote type
Neoprene & Polyurethane Liner
-10C~+80C
PTFE Liner /PFA Liner /F46 Liner
-10C~+160C
Ambient Temperature
-25C ~+ 60C
Ambient Humidity
5~100%RH(relative humidity)
Medium Electrical conductivity
20 s/cm
Measuring Range
1500: 1, flow rate<15m/s
Structure type
Integral type, remote type, submersible type, ex-proof type
Protection Class
IP65, IP68(optional)
Ex-proof Mark
ExmII T4
Product Standard
JB/T 9248-1999 Electormagnetic Flowmeter
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: May 29, 2018 - Modified date: May 29, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
