Lsuv Lj Type Uv Light Irradiation Cross Linked Cable Equipment - China

Ultraviolet Irradiation Crosslinking Equipment

Application of UV-light irradiation cross-linked equipment

The UV-light irradiation cross-linking process uses UV-light as the irradiation source, extrudes and coats the mixed photo-crosslinking polyolefin compound on the conductor wire core, and then immediately enters the special irradiation equipment for fused photo-crosslinking.

The insulated wire core after light irradiation cross-linking can be produced into photo-crosslinking polyolefin insulated wire and cable products through cooling treatment at different temperatures and other subsequent processing.

UV-light irradiation cross-linking method needs to be slightly modified only on the original normal extrusion production line.

The upper traction, irradiation box and electric control cabinet with a small floor area can meet the operating requirements and produce UV-light irradiation cross-linked polyethylene wire and cable products.

The addition of upper traction enables the conductor wire core to maintain a certain tension.

In the running process, it shall be always in the center of irradiation box to ensure the best irradiation effect.

The irradiation box uses a reflective focused UV light source that is uniformly configured and specially designed, and the electrical control system will ensure that the UV-light intensity and the irradiation temperature in the center of the irradiation box are in the optimum operating conditions.

In addition, the efficient photo-initiation system rapidly induces cross-linking reaction of polyolefin under the UV-light irradiation, so that the irradiation equipment can reach a continuous production speed of dozens of meters per minute, and gradually cools at hot, warm and cold temperatures to ensure the stability of three-dimensional cross-linked netlike structure.

LSUV-LJ type UV-light irradiation cross-linked cable equipment

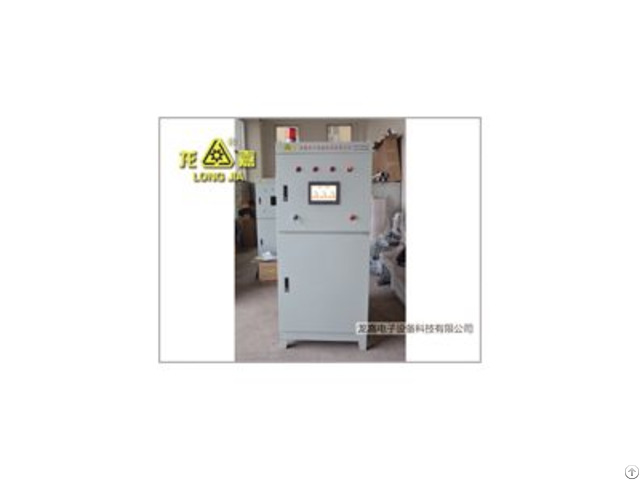

The UV-light irradiation cross-linked cable equipment is composed mainly of irradiation box, air supply/exhaust fan set, control cabinet and electronic power supply cabinet.

Company Contact:

• Posted By: Xingtai Longjia Electronics Technology Co.,Ltd.

• Phone: 0319-5867301

• Address: Building A-9, Fangda Science Park, No. 369, West Tianbao Street, Xingtai , Hebei , China

• Email:

• Website: https://www.ljcableequipment.com/

• Business Description: Xingtai Longjia Electronic Equipment Technology Co., Ltd. is a new modern enterprise specialized in production and sales of cable testing equipment and production equipment.

  It has a R&D team composed of senior engineers, engineers and technicians, and has applied for and obtained national patents for some products, giving new vitality to its sustainable development.

  The Company remains dedicated to providing Chinese enterprises in wire and cable industry with wire and cable testing equipment, mainly including UV-light irradiation cross-linking equipment, wire and cable load tester, power frequency AC voltage tester, power frequency EDM, heat aging test chamber, electric bridge, insulation resistance tester, thermostatic waterbath, projector, electronic tensile testing machine, wire and cable chipping

  machine, cross-linked cable chipping machine, sheet-punching machine, wire coiling and winding and torsional machine, electronic scale, density balance, fire-resistant and flame retardant testing device, cryogenic box, low-temperature stretching, winding and impact device, which can meet the process inspection needs for products covered in CCC/MA/production license.

  Based on customer feedback through market research, the Company has independently researched and developed the touch-type UV-light irradiation cross-linking production equipment (UV-LJ), upgraded SUV-LJ irradiation cross-linking machine and LEDUV machine to improve production efficiency due to the tedious production process and longer cooking time of silane cross-linking.

  The Company has started working with Hefei Smarter Technology Group and Zumbach Electronic AG to jointly develop wire and cable production equipment and online inspection equipment since 2012, and has been widely praised by its users.

  In fact, the word-of-mouth sales mode is the Companys biggest selling point.

  For the purpose of economic construction relying on science and technology, the Company has signed a strategic alliance of industry-university-resea rch cooperation regarding science and technology with Hebei University, Hebei University of Science and Technology, CETC, Hebei Cable Research Institute and Zhengzhou Cable Technical School, respectively.

  After many years of cooperation, it has made outstanding achievements in science and technology, and become a teaching base for Hebei University, Hebei University of Science and Technology and Zhengzhou Cable Technical School.

  The Company always adheres to the “market-oriented and customer-centered” management strategy, the fundamental principle of “first-class technology, first-class talent and first-class mechanism” and the management idea of “technology first, quality first and service uppermost” as well as the enterprise management policy of “keeping up with market trend, constantly pursuing perfection and striving for excellence”, hoping to sincerely cooperate, go forward hand in hand and cast brilliantly with domestic well-known enterprises and institutions as well as design organizations.
