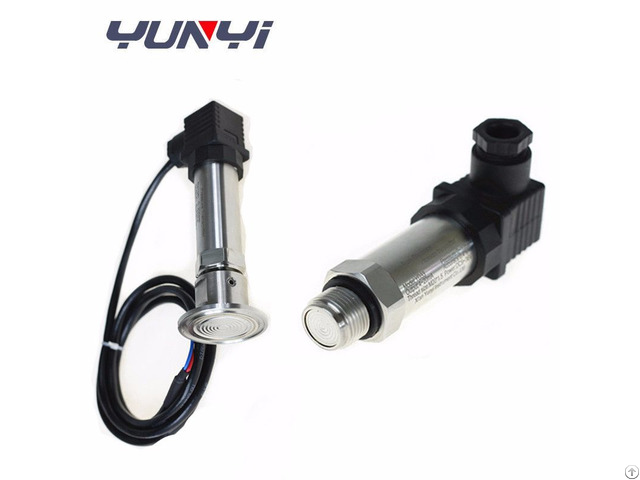

Low Cost Density Diaphragm Membrane Pressure Transmitter - China
price: 73.00 Dollar US$
Description diaphragm Membrane pressure transmitter price
Flush diaphragm pressure transmitter, designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization.
Smart compact design, the welded process diaphragm medium parts is made of high quality stainless steel 316L, filling fluid with hygiene standard in line with FDA certification, variety of international standard process connections are available.
Specification diaphragm Membrane pressure transmitter price
Range: 0-35/50/100/200/400/500/6 00Kpa 0-1/1.6/2.5/4/6/10Mpa
Accuracy: 0.25% FS; 0.5% FS; 1% FS
Output signal: 4-20mA (two-wire), 0-5V; 0-10V (three-wire)
Supply voltage: 24 (12 ~ 36) VDC, Pressure connection: G1 / 2, M12 * 1.5, or clamp type
Electrical connection: DIN, directly lead, aviation plug-ins
Hysteresis & non-linear & Repeatability: ≤ ± 0.5% FS
Comprehensive error (including temperature drift): ≤ ± 1% FS (-20 ~ 80 ℃)
Long-term stability: ≤ ± 0.25% FS 1 Year
Medium temperature range: -40 ~ 85℃(thread type)-40 ~ 150 ℃(clamp type)
Storage temperature range: -40 ~ 85 ℃
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 5, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
