Landtek Ultrasonic Thickness Meter Tm 8816c - China

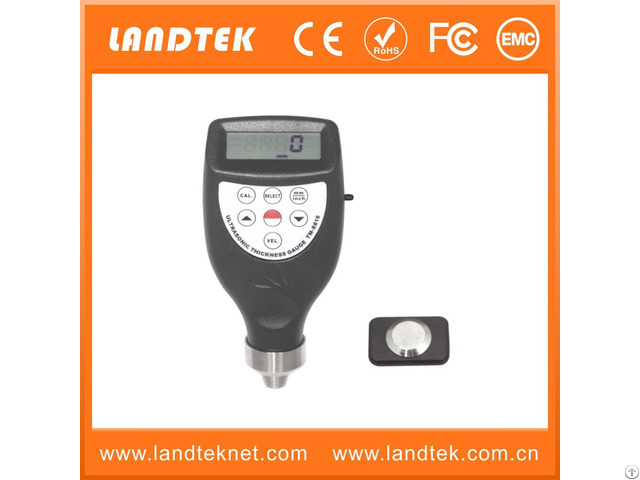

Ultrasonic Thickness Meter TM-8816C

Applications:

Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.

in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Features:

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use USB data output and RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Details:

Display: 4 Digit, 10 mm LCD

Operating Principle: Ultrasonic

Measuring Range (metric / Imperial): 1.0~200 mm / 0.04~8 inch

Battery Indication: Low Battery Indication

Sound Velocity: 500~9990 m/s

Lower Limit Steel Pipes: Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer

Calibration Block: Included

Resolution: 0.01 mm

Accuracy: ± (0.5%n + 0.1)

Operating Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH

Power Supply: 4 x 1.5 V AAA (UM-4) Battery

Dimensions: 135 x 65 x 27 mm

Weight: 120 g (Not Including Batteries)

Accessories:

Standard Accessories:

1 - Main Unit

2 - Calibration Block

3 - Coupling Agent

4 - Carrying Case

5 - Operating Manual

Optional Accessories:

1 - USB, RS-232C data cable with software

2 - Bluetooth data output with software
