Landtek Large Range Anticorrosion Coating Thickness Gauge Cm 8829h - China

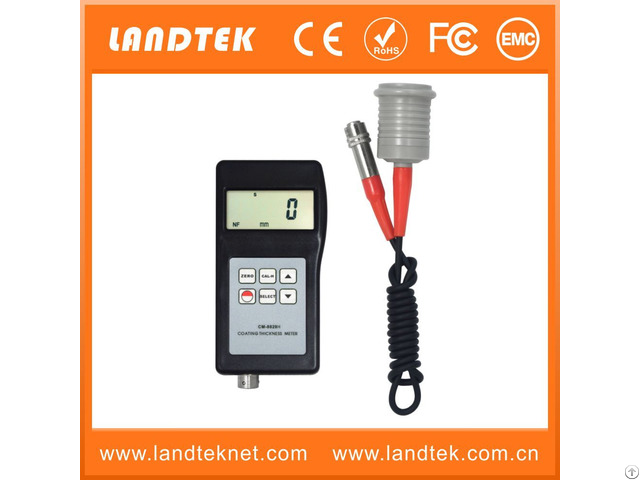

Anticorrosion Coating Thickness Gauge CM-8829H

Applications:

Anticorrosion Coating Thickness Gauge CM-8829H is equipped with the large range of F probe.

Measuring method: F probe

Coating:

*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.

(non-magnetic materials)

*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer,

copper tile, aluminium tile, some alloy tile, paper etc.

Base: iron, nickle etc.

(magnetic materials)

Details:

Operating Principle: F Magnetic Induction

Measuring Range: 0~12 mm

Resolution: 0.01 mm / 0.1 mm

Min.

Raius Workpiece: F Type: convex 20 mm / concave 50 mm

Min.

Measuring Area: 16 mm

Min.

Sample Thickness: 0.3 mm

Accuracy: ± 1~3%n or ± 0.2 mm

Auto Power Off

Metric / Imperial: Convertible

Battery Indicator: Low Battery Indicator

Operating Conditions: Temp.

0~40 °C, Humidity: 10~90 %RH

Power Supply: 4 x 1.5 V AAA (UM-4) Battery

Dimensions: 126 x 65 x 27 mm

Weight: 210 g (Not Including Batteries)

Accessories:

Standard Accessories:

1 - Main Unit

2 - Probe (F Type)

3 - Calibration Base Set (F Type) CTG-BS

4 - Calibration Foils CTG-CF (1 set, 4 pieces)

5 - Carrying Case

6 - Operation Manual

Optional accessories:

1 - USB, RS-232C data cable with software

2 - Bluetooth data out put with software
