Landtek Coating Thickness Meter Cm 1210a - China

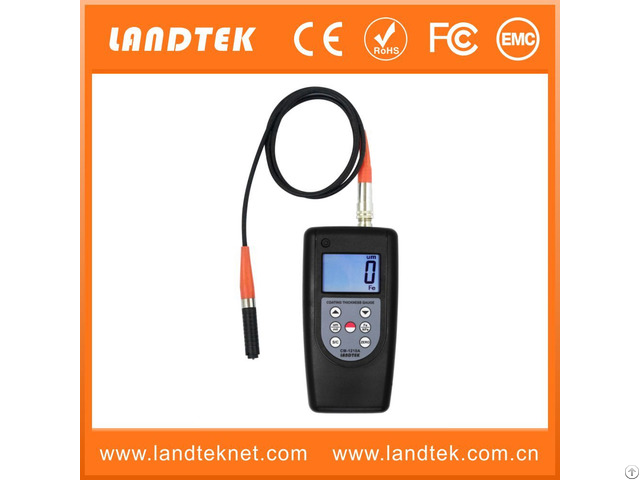

Coating Thickness Meter CM-1210A

Applications:

Coating Thickness Meter CM-1210A has two measuring methods to choose.

How to choose?

Measuring method: F probe

Coating:

*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.

(non-magnetic materials)

*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer,

copper tile, aluminium tile, some alloy tile, paper etc.

Base: iron, nickle etc.

(magnetic materials)

Measuring method: N probe

Coating: anodizing, varnish, paint, enamel, plastic coatings, powder, etc.

(non-conductive coatings)

Base: aluminum, brass, non-magnetic stainless steel, etc(non-magnetic materials)

Features:

* Two measuring methods: magnetic induction (F) and eddy current (N)

* Two measurement mode: Single and Continuous

(Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.

)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value, and automatic recognize the substrate.

* Operation process have buzzing reminder, while no buzzing in continuous mode.

* Use USB data output and RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

* Separate Type can provide several type probe, measure can be more flexibility.

Details:

Operating Principle: Magnetic Induction / Eddy Current (F / NF)

Measuring Range: 0~2000 um / 0~80 mil

Resolution: 0.1 um / 1 um

Min.

Radius Workpiece: F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm

Min.

Measuring Area: 6 mm

Min.

Sample Thickness: 0.3 mm

Accuracy: ± 1~3%n or ± 2.5 um

Auto Power Off

Metric / Imperial: Convertible

Battery Indicator: Low Battery Indicator

Operating Conditions: Temp.

0~40 °C, Humidity: 10~90 %RH

Power Supply: 4 x 1.5 V AAA (UM-4) Battery

Dimensions: 140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )

Weight: 215 g (Not Including Batteries)

Accessories:

Standard Accessories:

1 - Main Unit

2 - Probe (F Type & NF Type)

3 - Calibration Base Set (F Type / NF Type) CTG-BS

4 - Calibration Foils CTG-CF (1 set, 4 pieces)

5 - Carrying Case

6 - Operation Manual

Optional accessories:

1 - USB, RS-232C data cable with software

2 - Bluetooth data out put with software
