Krd60 3 Dof Simulation Table Test System - China

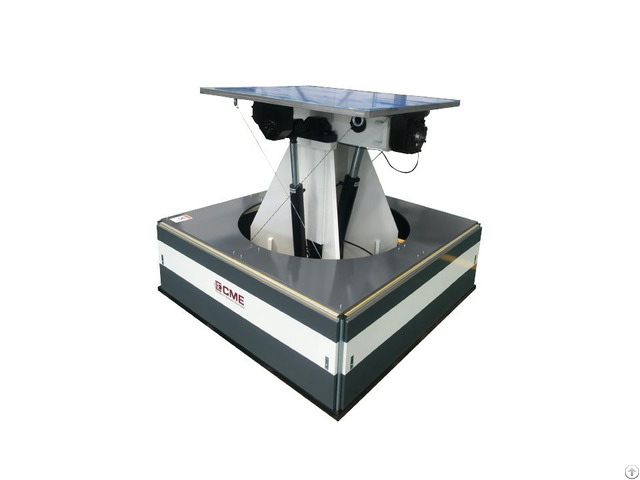

KRD60 Series 3 DOF simulation table simulates various mechanical, electrical, and electronic products installed on ships, seaplanes, and other equipment to perform sway and tilt tests to determine the ability and structural integrity of the product to withstand severe sway and tilt requirements.

The tilt test is mainly applicable to large-angle tilt caused by ship damage, manipulation, imbalance in loading and unloading, and wind.

The sway test is mainly applicable to long-term swaying of the ship due to external forces such as wind and waves, which must be maintained normally or products that work reliably, and products that have a significant impact on their performance in a rocking environment.

 It can complete one-way movement or compound movement of Rolling tilting, pitching tilting, rolling, pitching, and yawing.

 Based on the stable Windows OS and support automatic remote-control interface, the operator can accurately complete the tilting and swing test by entering simple values.

 The operation interface is mainly based on the real-time display of data curve, it also can display the test parameters, system status, and test progress.

 It can realize the functions of sine signal, self-closed loop adjustment, various function control and alarm prompt.

Technical Specifications

Model KRD60- 100 KRD60- 300 KRD60- 500 KRD60- 1000 KRD60- 1500 KRD60- 2000 KRD60- 3000 KRD60- 5000 KRD

60- 8000 KRD60- 10T

Max Load(kg) 100 300 500 1000 1500 2000 3000 5000 8000 10000

Height of Specimen COG(mm) 300 500 700 900

Yawing Angle 0~±10° Cycle 3s～7s

Rolling Angle 0~±45° Cycle 3s～30s

Pitching Angle 0~±30° Cycle 4s～30s

Rolling Tilting Angle 0~±45°

Pitching Tilting Angle 0~±30°

Table Size (mm) 800×800 1000×1000 1500×1200 1600×1300 1700×1500 1800×1600 3200×2100 3500×2800 4000×3000

Power AC380V±10％20KVA AC380V±10％ 22KVA AC380V±10％37KVA AC380V±10％45KVA AC380V±10％55KVA AC380V±10％70KVA AC380V±10％90KVA AC 380V±10％110KVA AC380V±10％150KVA

Working Environment Temperature Range: 0～40℃, Humidity ≤80% (no condense)

Standards IEC60068－2
