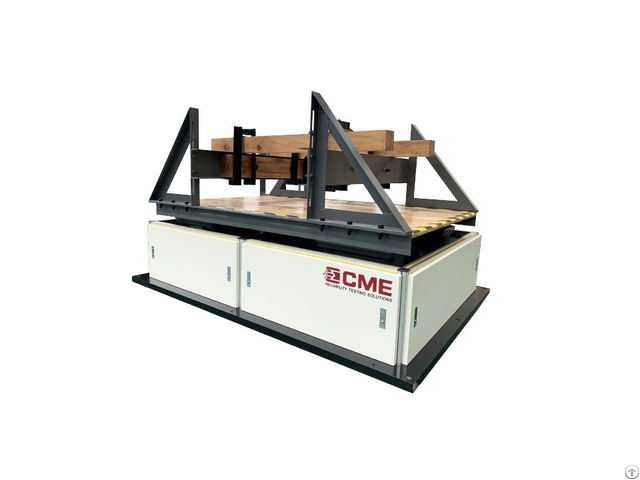

Krd51 Transportation Bounce Test System - China

KRD51 transportation bounce test system is mainly suitable for simulating the random shock environment test experienced during the transportation of bulk products to determine the adaptability of transportation and evaluation of the reliability and integrity of the product structure that when bulk products are transported by land, there will be free bounce, bump and friction between products or between products and the sides of the car or the bottom of the car.

The random shock environment it simulates cannot replace the random vibration environment simulated by the transportation test system The International Safe Transit Association (ISTA) developed a civilian package test procedure resembling the military test: 1A for products weighing less than 150 lb (68 kg) and 1B for over 150 lb (68 kg).

Additional tests in subsequent procedures such as 1C, 1D, 2A and further combine the loose cargo basic test with atmospheric conditioning and other factors.

MIL-STD-810 and ISTA Procedures 1A and 1B offer package test procedures for packages subjected to repeated vibration (bouncing Testing) for a distance of up to 150 miles (240 km), while unrestrained and repeatedly colliding with other cargo and the walls and floor of a four-sided compartment.

 Standardized testing machine, no need to adjust, easy to use.

 Optional computer control and acquisition functions.

 Foundation free

Technical Specifications

Model KRD51－100 KRD51－200 KRD51－500 KRD51－1000 KRD51－2000

Max Load(kg) 100 200 500 1000 2000

Displacement(mm) 25.4

Frequency 2~5Hz (120~300RPM)

Test Motions Rotary

Working Table Size(mm) 1700×1200 1900×1300 2000×1500 2700×1650 2700×1800

Height of Specimen COG(mm) ＜500 ＜600 ＜700

Consumption Power (kVA) 8 10 12 15 20

Weight (kg) 1600 2000 3500 5000 6000

Dimension(mm) 2100×1500×1200 2300×1800×1800 2700×1800×1800 2800×2200×2000

Power Supply AC380V±10%, 50/60Hz

Working Environment Temperature Range 0～40℃, humidity≤80% (no condense)

Standards ISTA-1A, 1B, 1C, 1D, 2A, 2B, 6-FedEx-A, 6-FedEx-B; ASTM-D999; ISO-2247; MIL STD-810G; FED-101
