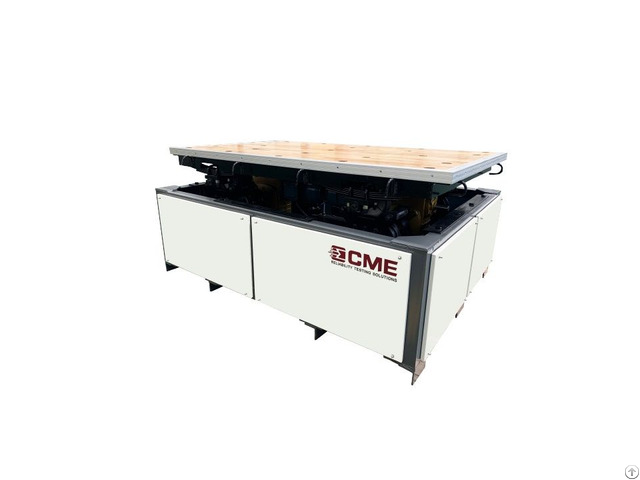

Krd50 Transportation Simulation Test System - China

KRD50 series transportation simulation test system can replace the actual traffic testing, and complete the road transportation simulation test of packaged or unpackaged products in the laboratory.

The simulation conditions are the random vibration environment generated when the vehicle is traveling at a speed of 20-80km/h on the intermediate pavement of the tertiary or fourth highways, to assess the product's adaptability to the vibration of automobile transportation under packaging or non-package, and to assess its structural integrity.

1 - The method of subband approach is used to simulate broadband random vibration.

Each subband contains a main natural frequency and meets the power spectrum of the subband.

The vibration magnitude and running time of the test bench are consistent with the actual road spectrum.

2 - Adopt truck chassis suspension technology, the acceleration factor can be adjusted;

3 - AC variable frequency control;

4 - No special foundation is needed, no other complicated operation or installation.

Technical Specifications

Model KRD50－200 KRD50－300 KRD50－600 KRD50－1000 KRD

50－2000 KRD50－3000 KRD

50－4000 KRD50－6000

Max Load(kg) 200 300 600 1000 2000 3000 4000 6000

Vibration Waveform Broadband Random

Instantaneous Probability Density Function Approximately normal distribution

GRMS of Acceleration (m/s2) 3.2

Simulated Truck Speed (km/h) 20～80

Simulated Pavement intermediate pavement in tertiary highways & intermediate and low pavement in fourth highways

Acceleration Level 1: 1

Height of Specimen COG(mm) ＜500 ＜600 ＜700 ＜800 ＜900 ＜1000 ＜1200 ＜1500

Working Table Size(mm) 1500×700 2000×1200 2200×1200 2700×1650 2700×1800 3600×2600 4000×2800 5000×3500

Consumption Power(kVA) 6 10 12 25 30 40 70 90

Overall Dimension(mm) 1700×850×950 2000×1500×950 2200×1500×950 2900×2200×1250 2950×2250×1250 3600×2600×1450 4000×2800×1550 5000×3500×1750

Weight (kg) 1600 2500 3000 5000 6000 8000 10000 15000

Power Supply three-phase 380V, 50/60Hz

Working Environment Temperature Range 0～40℃, humidity≤80% (no condense)

Standards GB/T4857.15－89 QJ/T815.1-94 QJ/T815.2-94 GJB150.16-86
