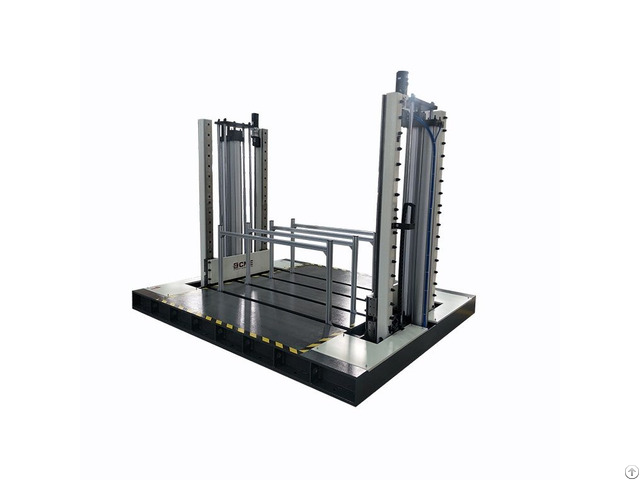

Krd42 Double Lift Zero Distance Drop Tester - China

KRD42 series double lift zero drop tester is mainly suitable for large size packaging products to resist drop impact performance, its powerful power system and unique sample support for easy loading and unloading of oversized, overweight items, and automatically rise to the set height, complete the drop test.

 Driven by pneumatic and servo motors, stable lifting process with upper and lower displacement restrictions, safe and reliable;

 Adopt single-track or dual-track lifting method, and the height can be adjusted arbitrarily;

 It can clamp and drop the test specimen in different directions such as edges, faces and angles;

 The testing machine adopts PLC full-automatic control, large size true color touch LCD screen,  Hand-held pad human-computer interaction software, easy to operate.

 The drop height is adjustable and the control is accurate up to 1mm

 No special foundation required, no other complicated operation or installation;

Technical Specifications

Model Zero-distance drop tester Double lift zero-distance drop tester Small drop tester

KRD40－100 KRD40－200 KRD40－300 KRD42－500 KRD42－800 KRD42－1000 KRD42－2000 KRD41-100 KRD41-200

Max Load(kg) 100 200 300 500 800 1000 2000 100 200

Drop Height(mm) 0～1500 0～1200 0～1000 0～1000 0-800 300-2000

Max Specimen Size(mm)1000×1000×1000 1200×1200×1200 1300×1300×1300 1400×1400×1400 1500×1500×1500 1600×1600×1600 1800×1800×1800 1000×1000×1000 1200×1200×1200

Position Accuracy ±2mm

Drop Zone Size(W*D/mm) 1200×1200 1400×1400 1500×1500 2400×1600 2600×1700 2800×1800 3200×2000 1200×1200 1400×1400

Test Mode Face, Edge and Angle

Power AC 380V ±10％ 50Hz

Working Environment Temperature range 0～40℃, humidity≤80% (no condense)

Standards ISO2248-1985 (E) IEC68-2-27 ISTA
