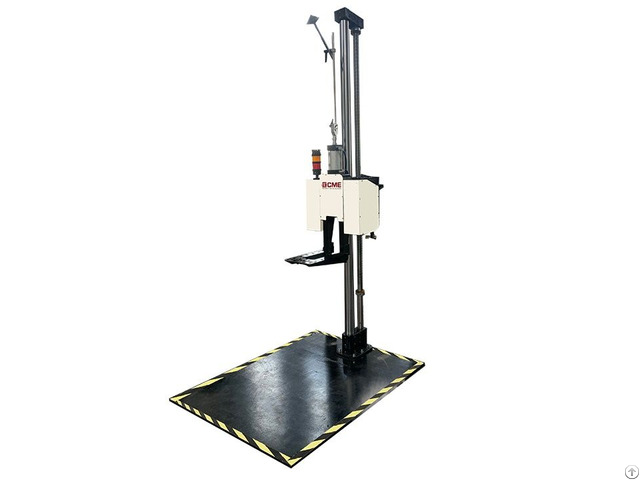

Krd41 Small Drop Test System - China

KRD41 series small drop tester is suitable for free-fall test of small consumer electronics and components such as mobile phones, walkie-talkies, electronic dictionaries, CD / MD / MP3 and so on, applicable standards JISC 0044 and IEC 60068-2-32 - Through standard tests on electronic products (surface drop, corner drop, edge drop, etc.

) and collecting data, it simulates the vertical drop impact of electronic products during transportation and handling.

It provides a basis for the design of the product's buffer and vibration damping and the selection of structural materials.

It can be dropped naked or dropped with packaging to evaluate the impact resistance or the damage caused by the fall of the product during transportation.

It is an indispensable test method to improve the product's quality.

It is applicable for electronic product research, development, quality control, manufacturing and other links.

1 - Upper and lower displacement limit to guarantee safe.

2 - The lifting height can be adjusted arbitrarily to meet the different requirements.

3 - It can clamp and drop the test sample at any angle

4 - Just place the machine on a flat marble or concrete floor, no special foundation needed

5 - Hand-held pad human-computer interaction software, easy to operate

6 - The drop height is adjustable and the control is accurate up to 2mm

7 - No special foundation required, no other complicated operation or installation

Technical Specifications

Model Zero-distance drop tester Double lift zero-distance drop tester Small drop tester

KRD40－100 KRD40－200 KRD40－300 KRD42－500 KRD42－800 KRD42－1000 KRD42－2000 KRD41-100 KRD41-200

Max Load(kg) 100 200 300 500 800 1000 2000 100 200

Drop Height(mm) 0～1500 0～1200 0～1000 0～1000 0-800 300-2000

Max Specimen Size(mm)1000×1000×1000 1200×1200×1200 1300×1300×1300 1400×1400×1400 1500×1500×1500 1600×1600×1600 1800×1800×1800 1000×1000×1000 1200×1200×1200

Position Accuracy ±2mm

Drop Zone Size(W*D/mm) 1200×1200 1400×1400 1500×1500 2400×1600 2600×1700 2800×1800 3200×2000 1200×1200 1400×1400

Test Mode Face, Edge and Angle

Power AC 380V ±10％ 50Hz

Working Environment Temperature range 0～40℃, humidity≤80% (no condense)

Standards ISO2248-1985 (E) IEC68-2-27 ISTA
