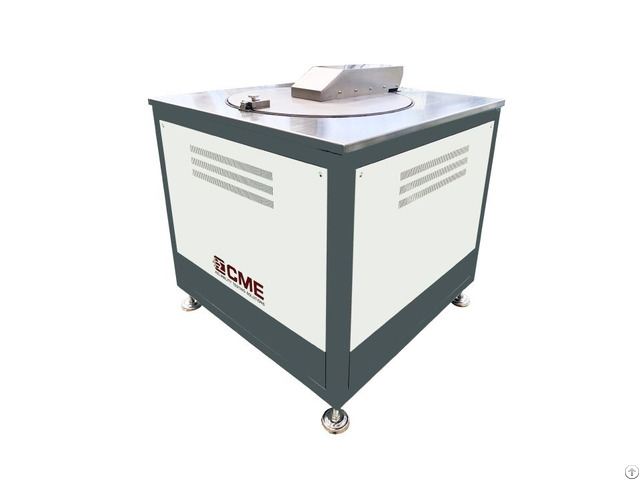

Krd30 Centrifugal Constant Acceleration Tester Box Type - China

KRD30 series box-type centrifugal constant acceleration testing machine is used to determine that electronic components, small components and other electrical and electronic products are subjected to the force generated by the steady-state acceleration (constant acceleration) environment, such as running vehicles, aerial vehicles, rotating machinery and projectile, whether the structural adaptability and performance are good, and to assess the structural integrity of some components.

 Box-type structure, eliminating the need for security and installation foundation.

 Advanced control system: Full-automatic computer remote real-time control interface.

The operator only needs to input simple values to start the equipment and complete the acceleration test accurately.

 User-friendly display interface: the control interface can display the test curve, tolerance and test time in real time.

 Powerful multi-acceleration continuous test system: It can realize multi-level acceleration continuous test according to the different requirements of the test sample.

 Reliable protection measures: open circuit, over-limit and over-speed protection can be realized.

 Multiple control methods: In the case of automatic control failure or no need of automatic control, the device can still use manual control to complete the test.

 The dual-mode operation of computer control and manual control is convenient, and the test results can be stored and printed.

 The software can realize single-stage and multi-stage (1-10 points continuous crossover) acceleration test control at one time.

Technical Specifications

Model KRD30－3 KRD30－5 KRD30－10 KRD30－20 KRD30－2M KRD30－3M KRD30－4M KRD30－8M

Max Load (kg)/Position 3×6 5×4 10×2 20×2 0.05×N 0.04×N 0.03×N 0.02×N

Acceleration (g) 1～500 1～100 200～20k 200～30k 200～40k 200～80k

Max Height for Specimen (mm) 200 300 /

Installation Radius (mm) 200 500 130

Test Direction ±X, ±Y ±Z Launch/Stop Time (Min) ≤3 ≤5

Continues Worktime(Min) 60 5

Acceleration Accuracy (%) ≤3

Overall Dimension (mm) 1100×1100×1200 1650×1350×1100 1000×1000×1200

Collecto r Ring Optional according to user requirements /

Weight (kg) 1000 1500 1000

Power Supply AC380V±10%, 50/60Hz

Control Mode Fully closed-loop digital network (remote) automatic control + manual control

Remarks The current collector and the control precision can be in accordance the related standards or customer requirements

Working Environment Temperature Range 0～40℃, Humidity≤80% (no condense)

Standards MIL-STD-810F IEC68-2-7 MIL-STD-202 Method 212 MIL-STD-750 Method 2006 MIL-STD-883 Method 2001
