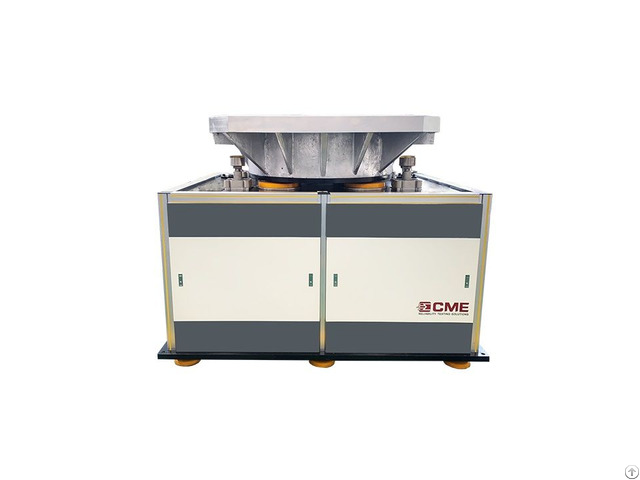

Krd20 Pneumatic Bump Test Machine - China

KRD20 series pneumatic bump test machine is suitable for evaluating electronic components, equipment and other electrical and electronic products undergoing repeated impact stress during production, transportation, use and maintenance, in order to evaluate and confirm the functional reliability and structural integrity of the product under the impact environment, so as to improve and optimize the structural design or layout of the product.

 Fully pneumatic driven, clean and environmentally friendly, good repeatability and high reliability.

 Control the frequency of bumps by adjusting the gas pressure to achieve continuous high-frequency bumps.

 Test time and bump frequency can be set arbitrarily, and it will stop automatically after the test is completed

 The controller has door protection, overspeed protection and zero signal protection to ensure the safety of the system.

 The drop height is adjustable, only need input the overload value; adaptive adjustment of the collision process to ensure the repeatability.

Technical Specifications

Model KRD20－50 KRD20－100 KRD20－200 KRD20－500 KRD20－800 KRD20－1000 KRD20－1500 KRD20－2000 KRD20－3000

Load (kg) 50 100 200 500 800 1000 1500 2000 3000

Table Size (mm) 500×500 600×600 800×800 1000×1000 1500×1500 1800×1800 2000×2000 2500×2000 2500×2500

Shock Waveform half sine wave

Peak Acceleration(g) 3～150 3～120 3～100 3～80 4～60 5～50 5～50 5～40 5～30

Pulse Duration(ms) 2～30 3～30 5～30 6~30 6~30 8~30 11~30

Bump Rate (Times/Min) 1~120 1~120 1~100 1~100 1-80 1~60 1-30 1-20

Overall Dimension (mm) 1050×1050×1300 1050×1050×1300 1100×1100×1300 1200×1200×1500 1300×1300×1600 1350×1350×1600 2000×2000×1850 2500×2000×1950 2500×2500×2100

Weight (kg) 1500 1500 2000 2500 2500 7500 8500 9500 11000

Power Supply AC220V ± 10%, 50Hz

Air Source ≤0.8Mpa

Working Environment Temperature range 0 ~ 40℃; Humidity ≤ 80% non-condense

Standards MIL-STD-810F IEC68-2-29
