Krd13 High Acceleration Shock Test System - China

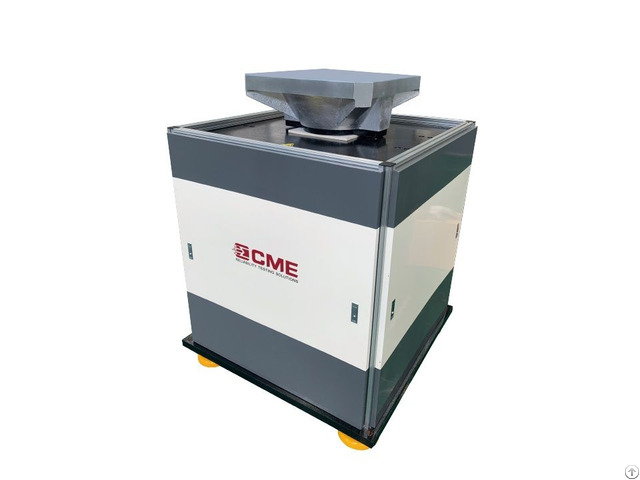

KRD13 series high acceleration shock test system is specially designed to meet the requirements of military industry and battery test.

The system adopts the principle of pneumatic energy storage expansion, by adjusting the internal pressure, it releases high impact energy in a short stroke.

It is suitable for assessing the functional reliability and structural integrity of various products under high energy shock or bump environment, so as to reproduce the shock wave energy suffered by products in the actual environment, thereby improving or optimizing the structural design or layout of the products.

1 - Windows-based stable control system, full-automatic remote-control interface 2 - Pneumatic cylinder driving with advantages of large driving force, short accelerating stroke, low cost and pollution free.

3 - The shock energy is large, and the shock test of 70g～45ms can be easily realized.

4 - Automatic control of lifting height with high accuracy and good repeatability

5 - Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter 6 - The most reliable double-brake system: effectively avoids secondary rebound collisions, more securely positioning the table, and more reliably guarantees the safety of the operator.

7 - Built-in pneumatic brake mechanism, safe and reliable.

8 - IPS-2000 shock control and measurement system can perform different shock waveforms.

9 - Optional foundation free: Air springs and dampers are used to reduce vibration.

Technical Specifications

Model KRD13－50 KRD13－100 KRD13－200 KRD13－500 KRD13－800 KRD13－1000 KRD13-2000

Rated Load (kg) 50 100 200 500 800 1000 2000

Table Size (mm) 500×500 600×600 800×800 1000×1000 1200×1200 1500×1500 2000×2000

Peak Acc (G) Half-Sine 10~1500 10-1000 10-500 10-400 10-300 10-200 Post-Peak Sawtooth 10~200 10~100 10-50 Trapezoid 15-200 15-200 15-100 15-100 15-60 15-50 30-50

Pulse Duration (ms) Half-Sine 2～60 2～60 3～60 4～60 5～60 6～60 8～60 Post-Peak Sawtooth 3～18 6～18 Trapezoid 3～18 6～18

Bump Waveform Half Sine Waveform

Shock Peak Acceleration (g) 5～100

Shock Pulse Duration(ms) 3～30

Bump Rate(Times/Min) 10-120

Overall Dimension (mm) 1200×1200×1500 1200×1200×1500 1200×1200×1500 1300×1300×1600 1500×1500×1700 1600×1600×1800 2000×2000×1900

Weight (kg) 3000 3200 3400 4000 5000 6000 8000

Installation Condition Environment Temperature range 0 ~ 40℃; Humidity ≤ 80%, non-condense Power AC220V±10%, 50Hz Air source ≤1MPa Floor Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment

Standards MIL-STD-810F IEC68-2-27
