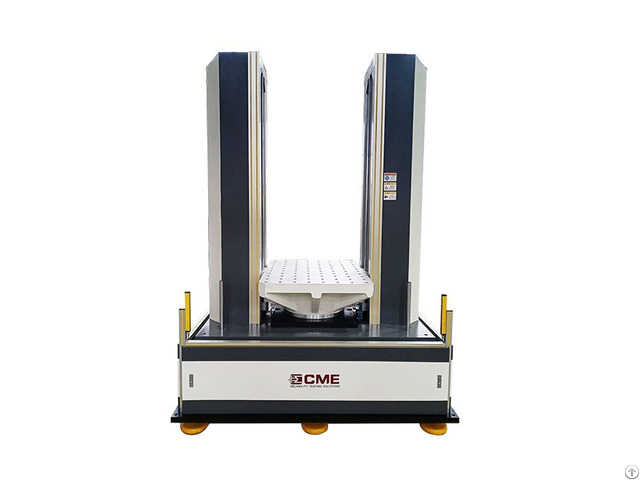

KRD11 series pneumatic vertical shock/bump test system is suitable for evaluating the functional reliability and structural integrity of various products under shock or bump environments, thereby improving or optimizing the structural design or layout of the products.

The system meets the requirements of both shock and bump test, can perform conventional half-sine wave, post-peak sawtooth wave, square wave and other waveform shock tests.

 Pneumatic drive without hydraulic leak risk and keep the environment clean.

 Maximum shock rate up to 120 times / min.

 It can easily realize large pulse width and small overload test.

 The speed and rate of shock can be easily controlled by adjusting the gas pressure.

 IPS-2000 shock control and measurement system can perform manual shock, continuous shock, single shock, and interval shock.

 Built-in brake mechanism ensures the safety of operation in any situation.

 Optional foundation free: air springs and damp

ers are used to reduce vibration.

Technical Specifications

Model KRD11－5 KRD11－15 KRD11－25 KRD11－50 KRD11－100 KRD11－200 KRD11－400 KRD11－600 KRD11－800 KRD11－1000 KRD11－2000

Rated Load (kg) 5 15 25 50 100 200 400 600 800 1000 2000

Table Size (mm) 150×150 200×200 300×300 500×500 600×600 800×600 800×800 1000×800 1000×1000 1200×1200 1500×1200

Peak Acc (g) Half-Sine 5-2.5k 5-2k 5-1500 10-750 10-600 10-450 10-400 10-300 10～300 10～250 10～150

Post-Peak Sawtooth 10-200 10-100 10-50

Trapezoid \ 15-200 15-100 15-60 15-50

Pulse Duration (ms) Half-Sine 0.5～40 1～40 0.6～60 1.5～60 2～60 2.5～60 3～60 3.5～60 4～60 4.5～60 6～60 Post-Peak Sawtooth 3～18 6～18 Trapezoid \ 3～18 6～18

Bump Waveform Half sine wave

Bump Peak Acceleration(g) 4~150 5～100

Bump Pulse Duration (ms) 2~30 3~30

Overall Dimension (mm) 1000×1000×2100 1200×1000×2200 1400×1200×2300 1600×1400×2300 1700×1500×2300 1700×1500×2300 1900×1500×2450 1900×1500×2450 2000×1500×2450 1900×1800×2550 2200×1800×2550

Weight (kg) 700 800 1000 1800 2500 2800 3800 4000 4800 5200 6000

Bump Rate(Times/Min) 10~120

Installation Condition

Environment Temperature range 0 ~ 40℃; Humidity ≤ 80%, non-condense Power AC220V±10%, 50Hz Air source ≤0.8MPa Floor Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment

Standards MIL-STD-810F IEC68-2-27
