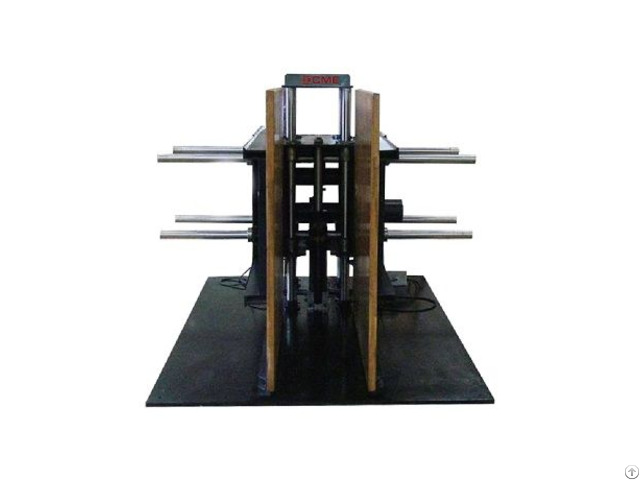

Krd102 Clamping Force Tester - China

KRD102 series clamping force tester is suitable for research, development, quality control and manufacturing of electronics, electromechanical, optoelectronic, automotive, toy, packaging and other industries.

It can simulate the situation that the goods in the container are clamped when they are transported from the container to the warehouse, whether the goods are damaged due to the clamping, so as to evaluate the anti- clamping ability of the packaging.

The clamping force tester is commonly used testing equipment for strength testing of scientific research institutions, colleges and universities, packaging technology testing centers, packaging material manufacturers, and foreign trade and transportation departments.

Technical Specifications

Model KRD102-1 KRD102-2

Clamping Capacity (kg) 0～1000 0～2000

Clamping Plate Size (mm) 1000×1000 1200×1200

The Distance Between Plates (mm) 400～1000 400～1200

Up/Down Height (mm) 0～300 0～300

Overall Dimension (mm) 1200×700×900 1200×700×900

Table Weight (kg) 1300 1500

Measurement &Control System PLC/PC controlled (optional)

Requirement for Foundation Flat cement floor

Power Supply AC380V±10％ 3KVA

Working Environment Temperature range: 0～40℃, humidity≤80% (no condense)

Standards ASTMD6055, American SEARS enterprise standards etc.

Remarks The indicator parameters can be customized by your requirements.
