Krd100 Incline Impact Tester - China

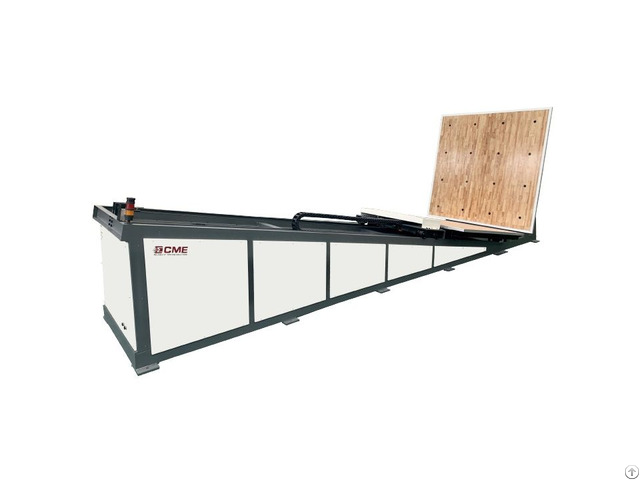

KRD100 series incline impact tester simulates the ability of product packaging to resist shock damage in the actual environment, such as handling, stacking of shelves, sliding of motors, loading and unloading of locomotives, product transportation, etc.

This machine can also be used as common test equipment for scientific research institutions, colleges and universities, packaging technology test centers, packaging materials manufacturing plants, and foreign trade, transportation and other departments to conduct incline impact test.

 Flexible low-damping tackle, high repetition accuracy, to achieve the required speed change value.

 High-strength and low-friction profile guide rails are beneficial to the accurate free sliding of the block.

 For heavy-duty test products, the horizontal rotation mechanism of the composite pulley table can be added to facilitate the user to install the test pieces.

 Hard wooden or iron sliding table, effectively protect the surface of the test piece.

 Complete control and measurement system, simple and convenient operation, integrated control and measurement.

 Unique lifting and release methods, with obvious advancement and reliability.

 During installation, the customer only needs to fix the machine on the ground, without other complicated operations or installation.

Technical Specifications

Model KRD100－100 KRD100－200 KRD100－300 KRD100－500 KRD100－1000 KRD100－2000 KRD100－3000

Max Load(kg) 100 200 300 500 1000 2000 3000

Working Table Size (mm) 1100×1100 1300×1300 1800×1800 2000×2000 2200×2200

Shock Panel Size(mm) 1600×2000 2100×2000 2000×2200 2400×2400 2600×2600

Shock Velocity Range(m/s) 1.2～3.87 0.59～2.35

Shock Velocity Error ≤±5%

Power Supply AC 220V±10％ 50Hz

Working Environment Temperature 0～40℃, Humidity ≤80% (no condense)

Standards ISO 2248 ISTA
