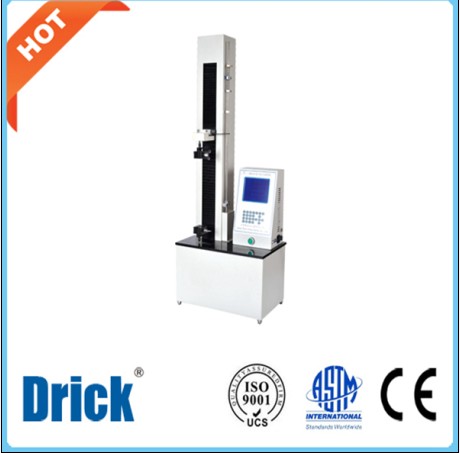

DRK101C( PC ) Intelligent Strength Tester

Product introduction

DRK101C( pc) Electro- tensile Strength Tester is a new type of intelligent test instrument with high precision, designed adopting modern mechanical design concept and microcomputer processing technology.

Micro- computer controls, LCD displays data, results and curves.

Professional software supports, controlled by microprocessor in all process of testing

Each function worked independently, standard unit, free form manual intervention;

Analyzes group of specimens, shows the arithmetic average, maximum, minimum

Menu interface, shortcut for selecting test, and easy to learn, master, and operate

Parameter can be preserved momentarily, it does not lose when the power off

Output of the test result can be adjusted discretionarily: strength maximum, tensile, anti- tensile maximum, definite strength tensile, definite strength, subdued intensity, flexible quantity.

Power over loading protects automatically, filmy and touched button, hyper- long life- span

Product features

1 - Transmission mechanism uses ball screw, making it stable and accurate.

Adopts imported servo motor, low noise, the control precision.

2 - Real- time display force- time, force – distortion, force - displacement, etc.

Latest software with the function of real- time display tensile curve; Instrument has powerful ability to display, analyze and manage data.

3 - Getting test results directly: At the completion of a set of tests, it can easily display measurement result and print our statistical report, including the average value, standard deviation and coefficient of variation.

4 - Professional control software provides a variety of utility functions such as group sample statistical analysis, test curve superposition analysis and historical data comparison.

5 - High degree of automation: instrument selecting advanced devices; microcomputer information sensing, data processing and action control, automatic reset, data memory, overload protection, etc.

6 - Multi- function, flexible configuration: The instrument is mainly used for plastic film but it can be widely used for other materials, such as paper, chemical fiber, metal wire, metal foil, and so on.

Product application

The test items include: Tensile, breaking, peeling ( 180 degree, 90degree) ,

It is applicable in testing the tensile, peeling, deformation, torn ( pants) , heat sealing, bonding, puncture force, opening force, low solution volume force and pull force ( requires special jig) performance test, etc of plastic film, composite membrane, soft packing materials, adhesive ( specific material shear test) , adhesive tapes, pressure- sensitive adhesive, rubber, paper, fiber products.

Technical standards

The tester is designed according to GB/ T 12914- 1991 - Its every capability conforms to relative test standards such as conforms to the standards of GB 13022- 91, GB/ T1040- 92, GB2792- 81, GB/ T 14344- 9, GB/ T 2191- 95, QB/ T 2171- 95 GB 13022, GB 8808, GB 1040, GB 4850, GB 7753, GB 7754, GB 453, GB/ T 17200, GB/ T 16578, GB/ T 7122, GB/ T 2790, GB/ T 2791, GB/ T 2792, ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/ T 2358, QB/ T 1130.

The test items include:

Specification 100N , 500N, 1000N, 5000N

Accuracy Higher than 0.5 grade

Deformation resolution 0.001mm

Test speed Speed promise

Sample quantity 1

Sample width 30mm( standard) , 50mm( optional)

Clamp manual

Route 400mm( customizable)

Dimension ( mm) 500mm( L) ×300mm( W) ×1150( H)

Power AV 220V, 50HZ

Main fixtures

Standard configuration: Mainframe; communication cable, A power line.

Optional: Standard roller, test board, sample cutter, floating roller clamp, non- standard clamp.
