Industrial Bimetallic Thermometer - China
price: contact company for price
Description industrial Bimetallic thermometer
Bimetallic thermometer is based on bimetal bended into ring shape.
One side of bimetal expands in time of being heated, which results in revolving of indicator, then the meter indicates corresponding temperature value to pyroelectric potential.

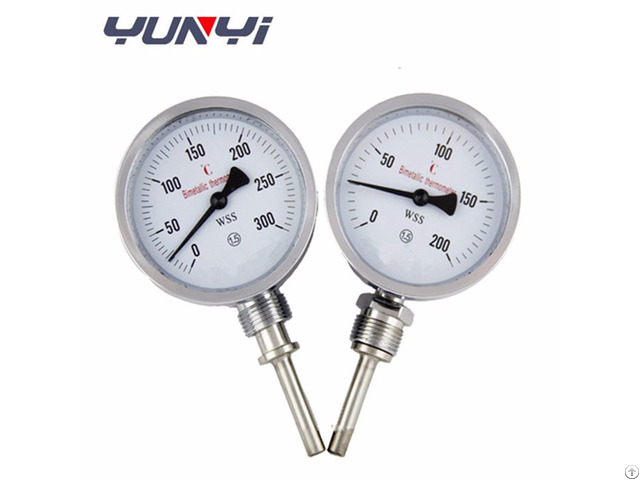

Detailed Images industrial Bimetallic thermometer
industrial Bimetallic thermometerindustrial Bimetallic thermometer
Specification industrial Bimetallic thermometer
Dial nominal diameter: 60, 100, 150
accuracy class: (1.0)1.5
thermal response timeā¤40s
level of protection: IP55
The Angle adjustment error: Angle adjustment error should not exceed 1.0% of its range.
return difference: Bimetallic thermometer shall not return difference more than the absolute value of basic error limits.
Repeatability: Bimetall ic thermometer repeatability limit range should not be greater than the absolute value of the basic error limits 1/2 - Bimetallic thermometer
Back Install Bimetallic thermometer
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co., Ltd
- Phone: 00862988812007
- Address: Room 1203B, Inland Port Mansion, No.9 Gangwu Road, Xi an International Trade & Logistics Park, X, Xi'an , Shaanxi , China
- Email:
Published date: March 26, 2018
- Business Description: Professional manufacturer pressure transmitter, pressure gauges, pressure calibrator and deadweight tester.
And we also develop valves, flow meter, temperature transmitter, level transmitter, densitometer etc.
They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
