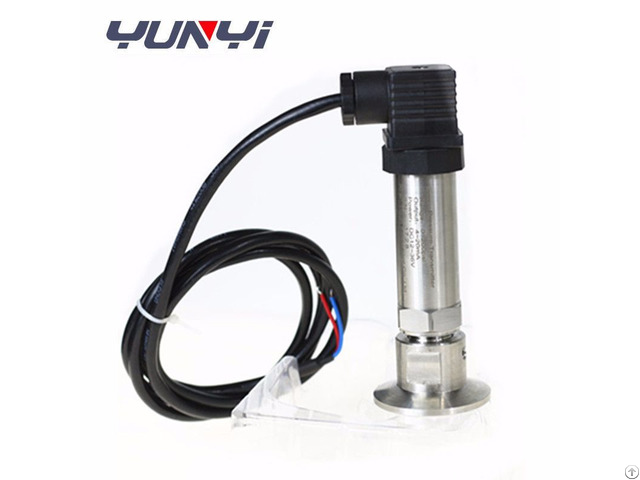

Hydraulic Pressure Transducer 500psi - China
price: 98.00 Dollar US$
Diffused silicon pressure sensor without liquid transmission, the pressure directly on the front surface of the diffused silicon diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the diffused silicon diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage.
The voltage signal is converted to a 4-20 mA current signal through the modulation amplifier circuit.
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 5, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
