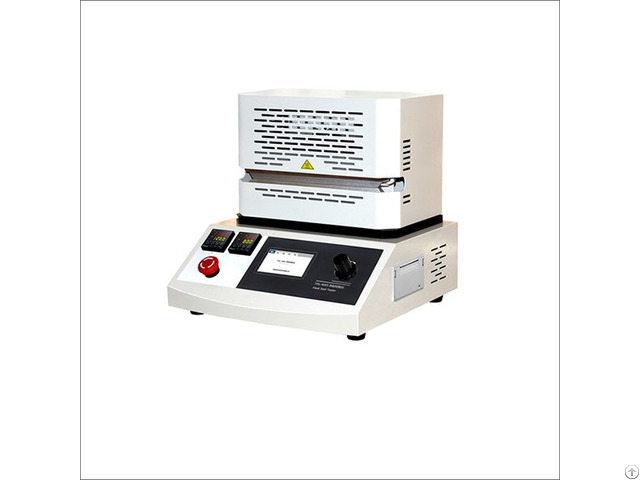

Hsl 6001 Heat Seal Tester - China
price: 1.00 Dollar US$
Application
Applies to best parameters determination of heat sealability of various kinds of film.
Heat sealability of film depends on temperature, pressure and heat time and the HSL-6001 Heat Seal Tester is widely used in food and pharmaceutical packaging industries.
Features
1: Our own patent technology
2: Embedded system control
3: Touch screen operation, easy to operate
4: TFT LCD display, UI flattening design
5: Dual heat jaws, temperature controlled independently
6: Micro-printer prints mini-report
7: Pressure easy to adjust, heat temperature and time touch screen input.
8: Emergency stop button, safety design to prevent burns
9: Over temperature protection, over pressure protection
10: Silence working
11: DB9 RS232 communication port.
12: DSM system is optional(Laboratory Management Information System), easy to manage and share test data.
Technical Indexes
Heat temperature: Room temperature+6 ~ 300℃
Accuracy: ±0.2 ℃
Dell time: 0.1~ 999.9s
Pressure: 0.05 MPa~1.1MPa
Heat jaw surface: 265mm × 12 mm (customized)
Heat jaws: 2, controlled independently
Gas source pressure: 0.05MPa ~ 1.1MPa (self-provide)
Gas source interface: Ф6mm
Outer dimension: 536 mm (L)×335 mm (W)×413 mm (H)
Work noise: 0db
Power supply: AC 220V 50Hz
Net weight: 33kg
Company Contact:
- Posted By: SYSTESTER Instruments Co.,Ltd
- Phone: 18765316730
- Address: Meili Road, Jinan , Shandong , China
- Email:
- Website: https://www.systester.com
Published date: February 2, 2019
- Business Description: SYSTESTER Instruments Co., Ltd is a leading manufacturer of package testing instruments and have over 20 years experience.
SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.
SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities.
SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
