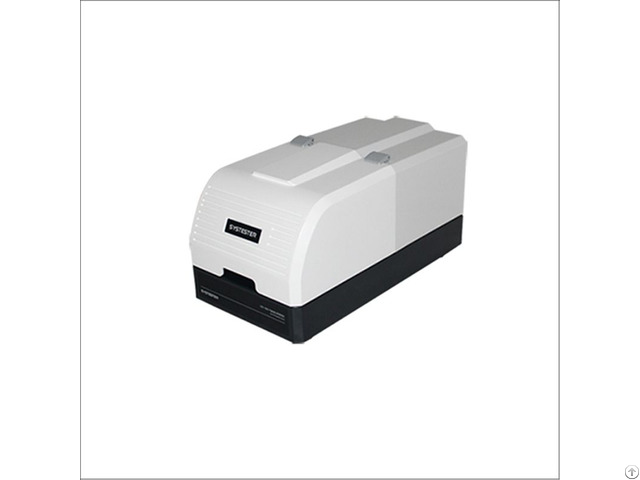

How To Do Gas Permeability Test For High Barrier Materials For Flexiblepackaging Product Detail Application: GTR is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.

How To Do Gas Permeability Test For High Barrier Materials Fo Flexiblepackaging Features: Ÿ Vacuum differential pressure method Ÿ Patent technology Ÿ 3 specimens test simultaneously and independently Ÿ Computer control Ÿ One-button test, test automatically through whole process Ÿ High accuracy vacuum sensors embedded in Ÿ 3 Chambers with independent temperature sensor Ÿ Test under various RH conditions with Humidity generator (optional) Ÿ Environment temperature and humidity sensor inside Ÿ Permeability coefficient, solubility coefficient and diffusion coefficient test Ÿ Chambers with water bath temperature control technology Ÿ Unit based on embedded system, 24bit Δ-Σ AD Ÿ Multiple test modes optional Ÿ Data curves display Ÿ Traceable reference film calibration Ÿ Supports DSM system (DSM, lab data management system) How To Do Gas Permeability Test For High Barrier Materials Fo Flexiblepackaging Technical Indexes: Test range 0.01 - 190, 000 cm3/m2·24h·0.1MPa (Standard)

Resolution 0.001cm3/m2·24h·0.1MPa

Samples 3, independent

Vacuum accuracy 0.1Pa

Temperature range 5C - 95C

Temperature accuracy ±0.1C

Humidity range 0%RH, 35%RH-90%RH, 100%RH (optional)

Humidity accuracy ±1%RH (optional)

Sample thickness less 5mm

Sample size >= 150mm * 94mm Test area 48cm2

Test gas O2, N2, CO2, He, etc

Differential pressure -0.1MPa - 0.1MPa Gas interface Ф8mm

Dimension 730mm * 510mm * 350mm

Power supply AC 220V 50Hz

Net wt.

63kg
