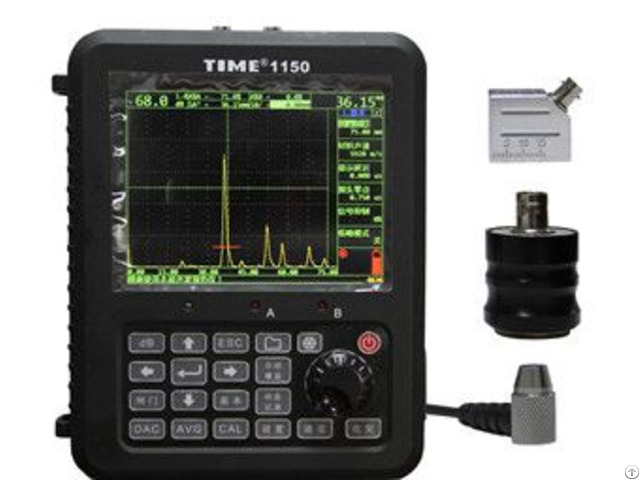

High Quality Ultrasonic Flaw Detector Time 1150 For Ndt - China

Features

● 5.7 inch, VGA color TFT display and LEMO/BNC probe connector.

● Wide measurement range from 1-10000 mm.

● Precise and stable horizontal and vertical linearity with horizontal linearity 0.1% and vertical linearity 2%.

● DAC, AVG , DGS curves and defect echo help to evaluate defect equivalent calculation.

● Simultaneous display of high resolution A-scan and B-scan waveform.

● Four ways to present waveform: positive half-wave, negative half- wave, full wave and radio frequency.




● Automatic gain adjustment, defect equivalent calculation and peak memory function.

● Two individual gates setting and alarming function.




● Gate measurement includes echo amplitude, beam path, depth, projection and so on.

● Waveform freeze available：in full, peak, comparative and envelope ways.

● 50 detecting channels are available with separate detecting parameters and DAC (Distance Amplitude Correction) curves in every channel.

● Adjustable high performance square wave pulse generator

● Three detecting modes(single-probe, dual crystal probe and transmission) with automatic calibration function.

● Connected to PC via USB interface with advanced software for data analysis and management.

● Super large memory, 1000 waveform and 4X2000 frame dynamic waveform diagrams can be stored, with the function of storage, checkout and review of channel, waveform, dynamic records.

● Flaw detection report printable.

Company Contact:

• Posted By: Beijing TIME High Technology Ltd.

• Phone: +86-010-62982299

• Address: No. 28 Shangdi West Road, Haidian District, Beijing , Beijing , China

• Email:

• Website: https://www.tgindt.com/

• Business Description: Beijing TIME High Technology Ltd. was set up in August 2002 as a wholly-owned subsidiary of TIME Group Inc., specialized in the research, development, production and sale of testing instruments.

  Our traditional advantage products include Portable Hardness Tester, Surface Roughness Tester, Ultrasonic Thickness Gauge and Coating Thickness Gauge.

  Meanwhile, we provide superior Bench Hardness Tester, Vibration Meter, Ultrasonic Flaw Detector, Infrared Thermometer, Concrete Testing Gauge, Colorimeter and Gloss Meter for our customer home and abroad.

  Testing machines developed and manufactured by Beijing TIME High Technology Ltd. are the best in China and advanced in the World.

  Our TIME® branded testing machine covers 12 series and nearly hundred products to distinguish from imitations, listed as "Beijing famous brand products", enjoying the most popularity and sale volume in China.
