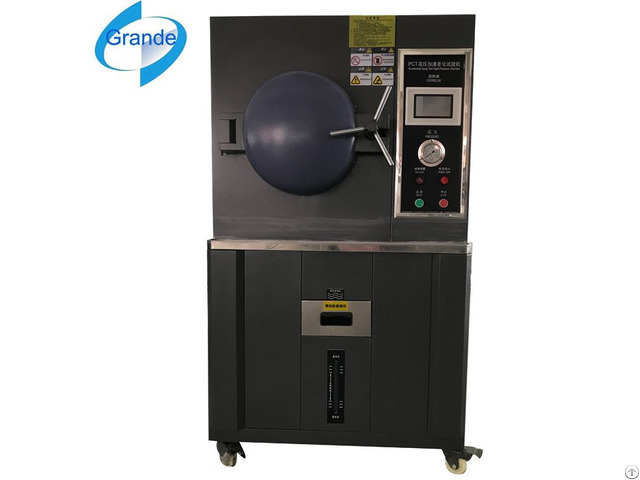

Hast Pct High Low Temperature Test Chamber Withpressure - China

HAST PCT high-low temperature test chamber with pressure high pressure accelerated aging testing chamber factory High Accelerated Stress Test Steam Aging Test Chamber

Ozone Aging Chamber

Chamber/HAST Chamber

It test the resistance to pressure and air tightness for circuit board, multi-layer circuit board, IC, LCD and magnet iron.

This machine is one of the common machine in aging equipment, used to test various types of materials for their performance under the condition of high temperature and high pressure.

Application: Quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, metal, plastic, automobile, food, chemical, building materials, medical and aerospace industries.

Pressure Accelerated Aging Test Chamber (HAST)

Safety Device high pressure accelerated aging testing chamber factory:

1 - Safety device for the pot: If the inner box is not closed, the machine can not start

2 - Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.

3 - Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off

the heating power.

4 - Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.

Technical Parameters of high pressure accelerated aging testing chamber factory:

Model GHAST- 25 GHAST- 35 GHAST- 45 GHAST- 55 GHAST- 65

Equipment Capacity(L) 17 43 87 155 250

Internal Dimension: Φ×D (mm) 300*250 350*450 450*550 550*650 650*750

External Dimension

Φ×D (mm) 850*1300*900 900*1350*900 1000*1480*1000 1150*1650*1200 1300*1800*1350

Steam Temperature Range Steam Temperature Range: 100°C~135°C, (143°C is optional)

Relative Pressure/

Absolute Pressure Relative pressure: display values indicated on the pressure gauge

Absolute pressure: Value that add 100 Kpa based on display values indicated on the

pressure gauge (The actual value in the inner box)

Steam Humidity 70~100%R.H. steam humidity adjustable

Steam Pressure(Absolute Pressure) 101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0Kg/cm2 is special standard)

Recursive Device Steam in forced-circulation

Safety Protective

Devise Water short storage protect, over pressure protect.

(have automatically/manual water replenishing, automatically discharge pressure function )

Accessories Two layers stainless steel plate

Powder AC220V, 1ph 3 Lines, 50/60HZ; AC380V, 3 ph 5 Lines, 50/60HZ

Customized service Welcome to Non-standard, Specail requirements, OEM/ODM orders.

The technical information will be subjected to change without notice
