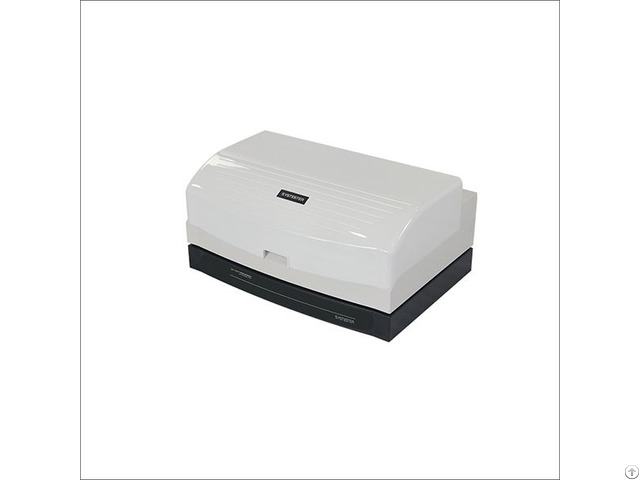

Gas Permeability Tester Differental Pressure Method Factory - China

Features *Vacuum differential pressure method *Patent technology *3 specimens test simultaneously and independently *Computer control *One-button test, test automatically through whole process *High accuracy vacuum sensors embedded in *3 Chambers with independent temperature sensor *Test under various RH conditions with Humidity generator (optional) *Environment temperature and humidity sensor inside *Permeability coefficient, solubility coefficient and diffusion coefficient test *Chambers with water bath temperature control technology *Unit based on embedded system, 24bit Δ-Σ AD *Multiple test modes optional *Data curves display *Traceable reference film calibration *Supports DSM system (DSM, lab data management system) Technical Indexes Test Range 30～60, 000 Gurley seconds(Standard)

0.0021～200um/Pa.

s(St andard)

300～60, 000Gurley seconds(Optional)

0～60, 000 Gurley seconds(Optional) Resolution 0.1 Gurley seconds

Sample Amount 1 (Standard)；3 can be customized.

Differential Pressure 0.01kPa～20kPa(STD：1.2 2kPa) Accuracy 0.01kPa

Test Area 1.0in2 - (0.25in2, 0.1in2 optional)

Sample Thickness ≤5mm

Test Gas Air, O2, N2, CO2(Self-provide)

Gas Resource 0.3MPa～1.0MPa

Interface Ф6mm

Dimension 320mm(L)×380mm(D)×410mm (H)

Power Supply AC 220V 50Hz

Net Wt.

25 kg
