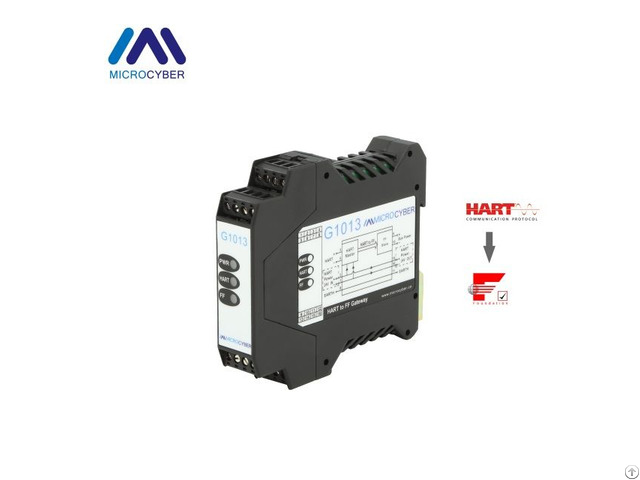

G1013 Hart 4 20ma To Ff Protocol Smart Gateway Converter - China
price: contact company for price
Product Overview G1013 HART to FF Gateway, designed by Microcyber Corporation is a gateway device converting from HART to FF protocol.
As HART master, G1013 HART to FF Gateway communicates with HART slave via standard HART bus, it can convert HART device data to FF function block data output.
HART device can be convenient and quick access to FF fieldbus system.
Features Connect 4 HART slave devices at most
Support HART 7.0 master protocol
Support 4-channel AI per device, totally 16 channels
Support 4 AI and 1 PID function blocks
Support ITK6.1.1, support function block diagnose
HART physical interface FSK, communication rate 1200bps
Provide standard DD, CFF files and communicator DD files
DIN rail installation, easy maintenance and configuration, transparent data transmission
Conveniently realize old device reform, protect investment
Company Contact:
- Posted By: Microcyber Corporation
- Phone: 862431217280
- Address: 17-8 Wensu Street, Hunnan New District, Shenyang , Liaoning , China
- Email:
- Website: https://www.microcybers.com/
Published date: October 31, 2019
- Business Description: Based on fieldbus technology, we are professionally engaged in R&D, manufacturing, sales and engineering service of communication stack, communication controller, customized communication board (FF H1, PROFIBUS PA and HART), control configuration software, control system, pressure transmitter with capacitance sensor or piezoresistance silicon sensor (FF H1, PROFIBUS PA and HART), temperature transmitter (FF H1, PROFIBUS PA and HART) and F/I & I/F converter, etc.
