G0310 Modbus Supported Rs485 Rs232 Ttl To Hart Protocol 4 20ma Analog External Gateway - China
price: contact company for price

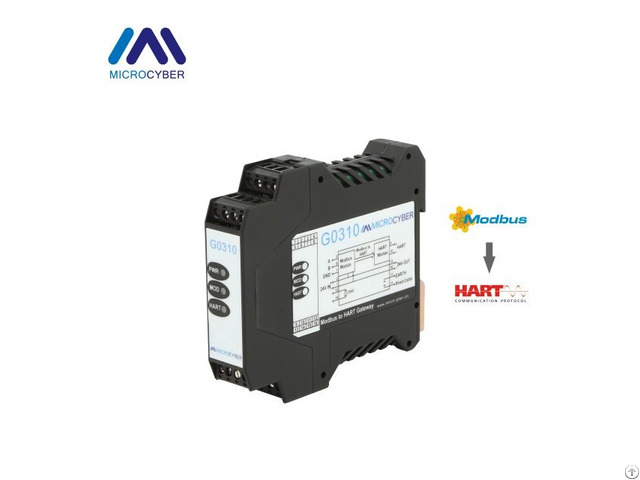

Product Overview G0310 Modbus to HART Gateway, designed by Microcyber Corporation is a gateway device for Modbus-RTU protocol and HART protocol.
As Modbus master, G0310 Modbus to HART Gateway communicates with devices that have Modbus-RTU communication function via RS485 interface.
It can convert device data to HART device variables output, and it also supports 4~20mAcurrent output.
Features Be tallied with HART7.0
HART slave and Modbus master mode
4~20mA analog signal overlay HART digital signal
Support 1 Modbus slave device
Support 6 device variables and 4 dynamic variables
Configure gateway by HART interface
Write protect user data
Support high/low alarm current
RS485 Modbus interface
LED power and communication indicating
Standard DIN rail installation
Company Contact:
- Posted By: Microcyber Corporation
- Phone: 862431217280
- Address: 17-8 Wensu Street, Hunnan New District, Shenyang , Liaoning , China
- Email:
- Website: https://www.microcybers.com/
Published date: October 31, 2019
- Business Description: Based on fieldbus technology, we are professionally engaged in R&D, manufacturing, sales and engineering service of communication stack, communication controller, customized communication board (FF H1, PROFIBUS PA and HART), control configuration software, control system, pressure transmitter with capacitance sensor or piezoresistance silicon sensor (FF H1, PROFIBUS PA and HART), temperature transmitter (FF H1, PROFIBUS PA and HART) and F/I & I/F converter, etc.
