Float Fuel Level Sensor - China

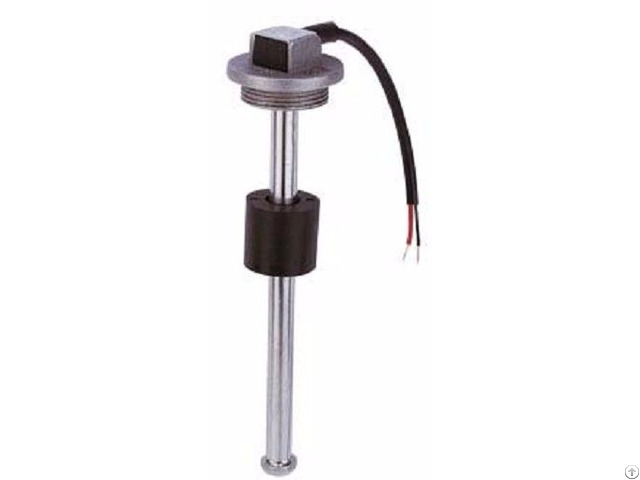

Float fuel level sensor

Parameter:

1 - Body material: stainless steel SUS316 or SUS304 (optional)

2 - Length range: 100~3500mm optional, interval 50mm (100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, customized as request)

3 - Thread: Screwed in BSP1 1/4 thread, or NPT thread as request

4 - Oring type: 38*2.6mm, 43*3.5mm .

5 - Wire: PVC material (optional P A bellows sheath)

6 - Resistance range: 0Ω-2000Ω/2000Ω-0Ω

0-V/0-8V/0-10V

7 - Wire output: Reistance signal 2 wire 0-190Ω, 0-500Ω, 240-33Ω, as request

Votage, current signal 3 wire 0-5V/4-20mA, as request with low high alarm: 4wire (resistance signal can be customized alarm)

8 - Detection voltage: 12-24V

9 - Detection current: <125mA

10 - Measurement accuracy: between 2%-10%

11 - Detection sensitivity: 10mm, 12mm, 21mm

12 - Basic error ±(R*1.5%+1.5)R

13 - Working temperature: -40~90C

14 - Hysteresis time: 0.1 seconds

15 - Service life: 5 million times

16 - Overall structure: column type

17 - Float material: NBR foam 35*32mm (suitable for diesel, gasoline, water)

technical parameters Application: Suitable for yacht, sailboat, fiberglass boat engines, generators, outboard motors, motor boats.

Features

• Widely used for oil level detection in trucks, buses, generator sets, ships and chemical industry

• Widely used in fuel, water, automotive and chemical liquid tanks

• With liquid level detection and liquid level alarm and other functions

• Electromagnetic induction principle, accurate measurement, stable output signal, good continuity

• Only the float is a moving part that is resistant to wear and has a long service life

• Simple and firm product structure, anti-vibration

• Stainless steel, with good corrosion resistance

• Suitable for a variety of work environments

• Length, wiring, alarm position can be customized
