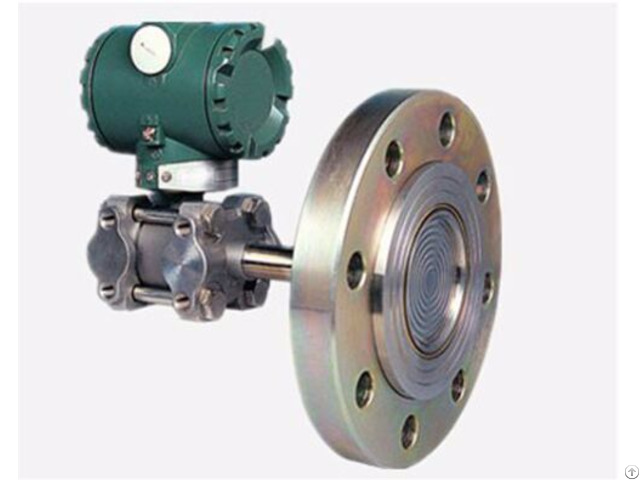

Flange Level Transmitter Model: CJBH-B

Description

Fix it on container by pipe flange, it is suitable for measuring high temperature, high viscosity easy precipitation or strongly aggressive media.

Level membrane component is plug-in or plane type.

Flange Diameter is 3 Inch and 3 Inch.

Pressure Grade is 150Ib and 300Ib.

User can choose 316 stainless steel, hastelloy alloy or tantalum membrane depend on media.

Feature

Static Pressure and one-way Over pressure Range: 3.45KPa (absolute pressure)～31.2MPa(gauge )

Measure level, pressure Media can be high temperature, macro-viscosity, and easy crystallized, easy precipitated or strong corrosive media

High accuracy good reliability and stability

Intrinsic safety and flame proof option Technical Parameter

Output: Analog: 2 wire 4-20 mADC; Digital; 2 wire 4-20mADC and utilize hard protocol procedure variable digital signals.

Power Voltage: 12.5-45VDC

Load Limit: Rmax depend on power voltage

Hart protocol: load resistance≥250Ω and ≦600Ω

Communication distance: MAX: 15Km, can connect to 15 units intelligent transmitters

Output: 4 bit digital display, 5 bit LCD screen, pointer type

Explosion-proof: ExiaIICT5; isolating explosion

Zero Shift: ‘Zero’ point can be transferred positive or negative, but can’t exceed upper and lower limit and Max measure Range.

Temperature Range: -20℃~85℃(When choose LCD indicator, it is -20℃~70℃)

Media Temperature: -40℃~104℃

Static Pressure and one-way Over-pressure Range: 3.45KPa(absolute pressure)～31.2MPa(gauge )

Relative Humidity: 5-98%RH

Setup time: within 5 sec.

Capacity variation: less than 0.16cm3

Damping adjustment: time constant 0.20-25 sec.

Trouble Alarm: if sensor has troubles and it can automatic diagnosis and output 3.9 or 21.0Ma

Configuration protection: in order to avoid of correcting the configuration datas of

transmitter, can lock stored data by software or protection switch.
