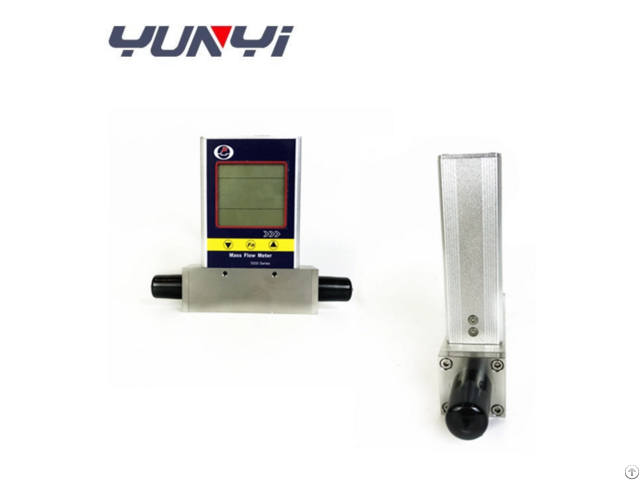

Explosion Proof 4 20ma Argon Gas Mass Flow Meter - China
price: 980.00 Dollar US$
Explosion-proof 4-20mA argon gas mass flow meter are specially designed for small pipe flow monitoring and control.
The series can measure gas flow in a pipe diameter as small as 3 mm, but not over 19 mm.
With the self-flow conditioning feature of the MEMS sensor package, the meters feature an extremely low pressure loss compared to the traditional by-pass thermal mass flow meters in this application scope.
The accuracy of the meters are generally ±(1.5+0.2FS)% or better depending on the requests.
The meters can work at an environment of -20 to 60 C and pressure up to 1.5 MPa.
Applications include semiconductor gas process monitoring and control, hospital oxygen gas monitoring, etc.
Accuracy: ±(1.5+0.5FS)% Environment Temperature: -20 ~ +60 oC Humidity: < 95 %RH (No icing or condensation) Flow channel : 3 ~ 19 mm Display: Flowrate and accumulated flow Interface: 4 ~ 20 mA; RS485; Pulse Calibration: Air @ 20 oC, 101.325 kPa Protection: IP40 (Without Ex proof model); IP66 (With Ex proof model) Ex Proof: Ex d IIC T4
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: May 30, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
