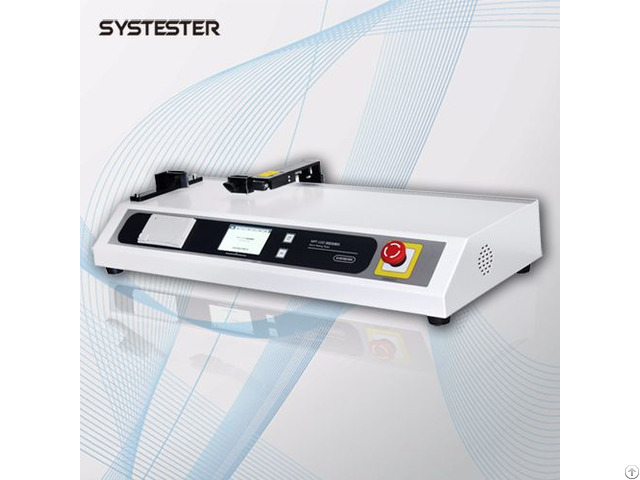

Electrochemical Aluminum Micro Peeling Tester Testing Machine - China

Testing range:

For the professional test of peeling force and bond strength Of various kinds of flexible laminated plastics or equivalents.

Brand : SYSTESTER INSTRUMENTS CO., LTD

Type: MPT-1102

SYSTESTER, professional + innovation + technology+ product + service

Electrochemical aluminum micro peeling tester, peeling force testing machine Main features:

1 - Professional in peeling force and bond strength test.

2 - Designed based on various standards.

3 - Our own patent technology, touch screen operation

4 Real color TFT LCD display.

5 High accuracy load cell built-in.

6 Test speed can be preset freely through touch screen.

7 Micro-printer built-in.

8 Different load cell range can be selectable.

9 Various professional grips can be optional.

10 Overload warning.

11 Low power consumption.

12 RS232 communication port.

13 Professional computer software support.

(optional)

Electrochemical aluminum micro peeling tester, peeling force testing machine Technical indexes：

load cell range 5N, 10N, 30, 50N, 200N

resolution 0.001N

test speed 1~500mm/min

peeling distance 500mm

resolution 0.01mm

Sample width 10mm, 15mm, 20mm, 25.4mm, 30mm (optional)

Power supply AC 220V 50Hz

Consumption 30w

Dimension 750mm(L)*340mm(B)* 116mm(H)

Net weight 22kg

Standard:

ASTM D3330, GB/T 25256, GB 8808, GB2792



Configuration

Delivery: unit, peeling grips

Optional: Professional computer software, calibration accessories, peeling fixtures, test plates.

Other relevant product:

Barrier tester：gas / oxygen /water vapor permeability tester, infrared detection method WVTR permeability, electrolytic detection sensor method WVTR permeability etc.

Testing device: auto-tensile tester, coefficient of friction tester, micro peeling tester etc.
