Drk109c Paper And Paperboard Bursting Strength Tester - China

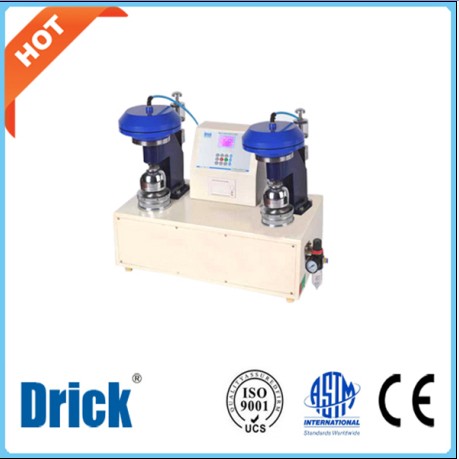

DRK109C Paper and Paperboard

Bursting Strength Tester

Product Introduction

109C Paper and Paperboard Bursting Strength Tester is the basic instrument to test the strength performance of paper and paperboard.

It is a kind of international universal Mullen instrument.

This instrument is easy to operate, have reliable performance, and advanced technology.

It is an ideal testing equipment for scientific research units, paper mills, packaging industry, quality inspection department.

Product features

1 - Computer control systerm, open architecture, highly automatic program, to ensure the high accuracy, and convenience to operate.

2 - Automatic measurement, Intelligent calculating functions.

3 - Equipped with micro- printer, convenient to get the test result.

4 - Mechatronics modern design concept, hydraulic system, compact structure, nice appearance, easy maintenance.

5 - Self- developed software, having automatical measure, statistics, print test results, data save function.

Product application

It is applicable to a various of single paper and thin cardboard and multi- player corrugated cardboard, it is also used in silk, cotton and other non- paper products bursting strength test.

Technical standards

ISO2759 <paperboard- determination of bursting strength>

QB/ T1057 <paper and paperboard bursting tester>

GB1539 <paperboard –determination of bursting tester>

GB/ T 6545 <corrugated board- determination of bursting strength>

GB/ T 454 <paper- determination of bursting strength>

Product Parameter

Item Paper Test Cardboard Test

Measuring range 10～ 2000Kpa 10～ 6000Kpa

Pressure between platen >430 Kpa >690 Kpa

Diaphragm resistance Protruding 10mm, 20- 40 Kpa Protruding 10mm, 170- 220 Kpa;

protruding 18mm, 250- 350 Kpa

Accuracy 1grade ( resolution: 0.1 Kpa)

Value accuracy ±0.5% F.

S

Hydraulic system leak in the measurement of upper limit value,

1min pressure drop <10% Pmax

Sample clip ring size Upper platen aperture dia.

φ 30.5±0.05mm

Lower platen aperture dia.

φ 33.5±0.05mm Upper and lower platen aperture dia.

φ 31.5±0.05mm

Motor power 90W

Power 700mmx400mmx550mm

Dimension 220V±10% 50Hz

Main fixtures

Mainframe, 4 rolls of printer paper, certificate of quality, operational manual, power line
