Computer Servo Tensile Test Machine - China
price: contact company for price
roduct Description
This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture.
Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture.
Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen.
And the strength value will be displayed automatically.
Main Technical Parameter
Items Specification
Sensor Celtron load cell
Capacity 1000, 2000, 3000, 5000kg
Unit Switchover G, KG, N, LB
Display Device PC
Resolution 1/250, 000
Accuracy ±0.5%
Max.
Stroke 1000mm (including fixture)
Test Speed 0.1-300mm/min (adjustable )
Motor Panasonic Servo Motor
Screw High Precise Ball Screw
Elongation Accuracy 0.001mm
Power 1∮, AC220V, 50HZ
Weight Approx.
250kg
Accessories One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual
Product Features
1 - Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2 - Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3 - Data transmission: RS232
4 - Displacement resolution: 0.001mm
5 - Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6 - It can save results automatically after test finished, and it is manual filing.
It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7 - User can set parameters of product material such as length, width, thickness, radius, area and so on.
8 - Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
Company Contact:
- Posted By: Haida Equipment Co., Ltd.
- Phone: 86076928685174
- Address: The 1st Industry area of Caibai, Daojiao Town, Don, Dongguan , China
- Email:
- Website: http://dghaida.en.alibaba.com
Published date: August 22, 2013
- Business Description: Haida Equipment Co., Ltd. is headquartered in Taichung.
As a
comprehensive manufacturer of precision detecting instruments, Haida has
contributed to the development of global industry for a long time.
In
order to better serve clients in mainland China, our company set up
factories and offices in Dongguan in the early 21st century.
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields.
Our products meet UL, ASTM, JIS, GB, ISO, TAPPI, EN, DIN, BS and other domestic and international standards.
With advanced processing equipment and exquisite manufacturing technology, our company focuses on human resource development and maintenance and cultivates a strong R&D and manufacturing team, thus providing a strong guarantee for the manufacture of high quality products.
We have always insisted on the principle of "quality first, sincere service".
According to customers' needs, we constantly challenge ourselves to be excellent and promote the development of our company.
We wish to cooperate with customers all over the world based on mutual integrity.
Company Services: Adhering to the business philosophy of "Quality comes from precision; quality creates the future", all Haida employees serve each client actively and conscientiously in order to meet full customer satisfaction.
Related listings
-
Non Contact Thickness MeasurementEquipment - Testing / Measuring - Xi'an Xingyue Laser Thickness Gauge Co.,Ltd - China - August 20, 2013 - contact company for price
Application: Online laser thickness measuring gauge is used to measure the thickness of every kind of rubber sheet, rubber film, plastic sheet, waterproof roll, cloth and other transparent and non- transparent flexible plate. It has the function of t...
-
On Line Film Thickness Measurement SystemsEquipment - Testing / Measuring - Xi'an Xingyue Laser Thickness Gauge Co.,Ltd - China - August 20, 2013 - contact company for price
Application Infrared film thickness measuring gauge is widely used for online measuring of every kind of transparent and translucent plastic film, paper and so on. Function: The instrument use precision "mouth" glyph scanning mechanism to scan the ob...
-

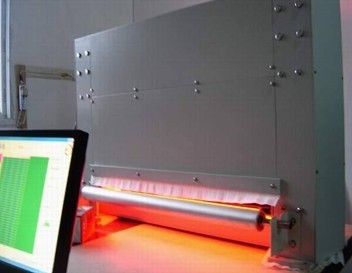

Xy Xc Flaw Onine Detection SystemEquipment - Testing / Measuring - Xi'an Xingyue Laser Thickness Gauge Co.,Ltd - China - August 20, 2013 - contact company for price
