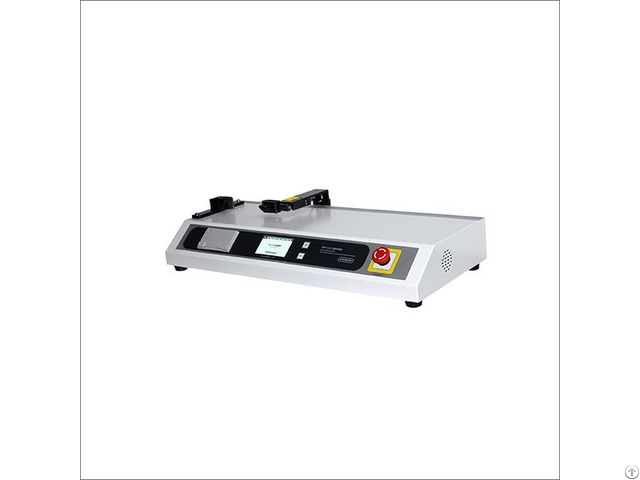

Coefficient Friction Tester Cof Cable - China
price: 1.00 Dollar US$
Application Applies to plastic films, laminated films, extrusion films, foils, sheets, rubber, paper, paperboard, wood, brake pad, tyres, windshield wiper, conveyor belt, hare, metal, carbon rod, catheter, artificial skin etc testing of static coefficient and dynamic coefficient, especially used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.
Features 1: 2 patents and 2 counts of software copyright registration.
2: GB test mode.
(ISO test mode) 3: Highly accurate load cell, ac-servo drive.
4: Test speed can be set freely in the range.
5: Touch screen operation.
6: Real color TFT LCD display.
7: Wide range sample thickness test available.
8: Sled mass freely input.
9: Micro-printer built-in.
10: Overload, limit position protection.
11: Low power consumption and silence running.
12: DB9 RS232 communication port.
13: COFlex professional computer software support.
14: Group test, auto multiple curves display and auto statistic calculation.
15: DSM system is optional(Laboratory Management Information System), easy to manage test data.
Technical Indexes Load cell range 5N Accuracy 0.05%FS MAX.
Max travel distance 400mm.
Displacement accuracy better than 0.1mm.
Sled mass 200g (Personal customization available) Sled area 63mm X 63mm.
(Personal customization available) Test speed 100mm/min.
Sample thickness 30mm.
(optional) Power supply AC 220V 50Hz.
(optional) Power consumption 25W.
Dimension 650mm(L) Í340mm(B) Í 210mm(H) Net weight 42kg.
Company Contact:
- Posted By: SYSTESTER Instruments Co.,Ltd
- Phone: 18765316730
- Address: Meili Road, Jinan , Shandong , China
- Email:
- Website: https://www.systester.com
Published date: February 2, 2019
- Business Description: SYSTESTER Instruments Co., Ltd is a leading manufacturer of package testing instruments and have over 20 years experience.
SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.
SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities.
SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
