Changable Pressure Auto Thickness Tester Astm High Precision Sensor - China

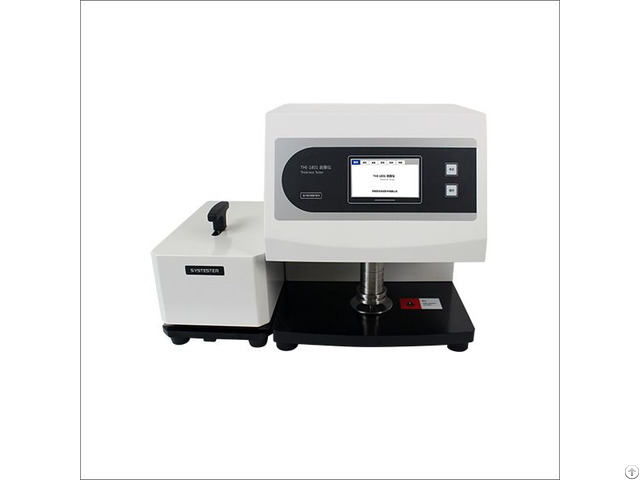

Changable Pressure Auto Thickness Tester ASTM High Precision Sensor Product Details Application: This thickness tester is based on contacting method and designed to precisely measure thickness of plastic films, aluminum foil, aluminized films, plastic composite films, paper-plastic composite films, coextruded films, aluminum foil composite films and many others.

Changable Pressure Auto Thickness Tester ASTM High Precision Sensor Features 1 - Embedded system control, patent technology.

2 - Touch screen operation.

3 - Real color TFT LCD display.

4 - Max, Min, Aver, SD result display.

5 - Manual test and automatic test.

6 - Multiple ranges selectable.

7 - Micro-printer prints mini-report.

8 - Result with multiple units display.

9 - Sample auto feeder available.

(optional) 10 - Traceable standard block calibration.

11 - RS-232 communication port.

12 - Professional computer software support.

(optional) Changable Pressure Auto Thickness Tester ASTM High Precision Sensor Technical Indexes: Range 0-2mm (standard)

Resolution 0.1um

Test speed 15times/min ( Adjustable)

For film Test area

Test pressure 17.5±1kPa

For paper Test area Test pressure 50±1kPa

Power supply AC220V 50Hz

Dimension 330mm (L) X 285mm (W) X 370mm (H)

Net weight 38kg
