Bs En 12600 Pendulum Glass Impact Tests - China
price: 2055.00 Dollar US$
Reference Standard:
BS EN 12600: 2002 Glass in building – Pendulum test – Impact test method and classification for flat glass
Technical Data:

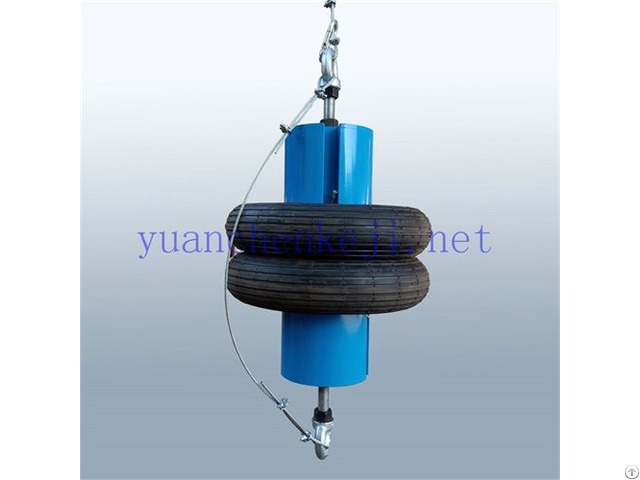

1) Pneumatic Tyres Impactor: Weight: 50 kg ± 0.1 kg Tyre pressure: 0.35Mpa ± 0.02Mpa Tyre type: 3.50-R8 4PR Sample size: 876 mm ± 2 mm * 1938 mm ± 2 mm Inside the sample frame: 847 mm ± 5 mm * 1910 mm ± 5 mm Impact frame footprint: 1300 mm*3900 mm*3700 mm Lifting mode: manual, automatic optional Impact body release mode: manual, automatic optional
2) Impact Testing Frame: Frame Size: 1900mm*1500mm*3570mm Samples Size: 1930mm*864mm Lift: Electric Release: Auto Maximum impact height: 1200mm (customized) Rubber Pad Width: 15mm Rubber Pad Thickness: 3mm Rubber Pad Hardness: Shore A50
Company Contact:
- Posted By: Qinhuangdao Yuanchen Hardware Co.,Ltd
- Phone: 863353899615
- Address: Northern Industrial Zone, Haigang District,, Qinhuangdao , Hebei , China
- Email:
- Website: https://www.yuanchenwujin.com/
Published date: January 8, 2021
- Business Description: Yuanchen supply nonstandard metal stamping, sheet metal working, sheet metal fabrication, laser cutting service, safety glass testing equipment, metal bracket, sheet metal bending, sheet metal forming etc.
Customized OEM service and Free Sample Confirmed.
Qinhuangdao Yuanchen Hardware Co., Ltd. is special in metal processing and nonstandard metal parts.
Products are widely used in:
Auto Parts
Indurtry Parts
Electronic parts
Machinery Parts
Cosplay metal parts
Construction Fittings
Photovoltaic hardware
Sports equipment parts
Medical device metal parts
Cosplay metal parts
Glass inspection equipment
OEM/ODM
Sheet metal fabrication/Nonstandard parts
Metal laser cutting/Stamping/Bending/ Welding/Punching/Blanking /Forming
Various of safety glass impact test equipment and parts
Brackets/Gasket/Cab le hanger/Connector/Clip/Cla mp/Iron fittings/Hinge
