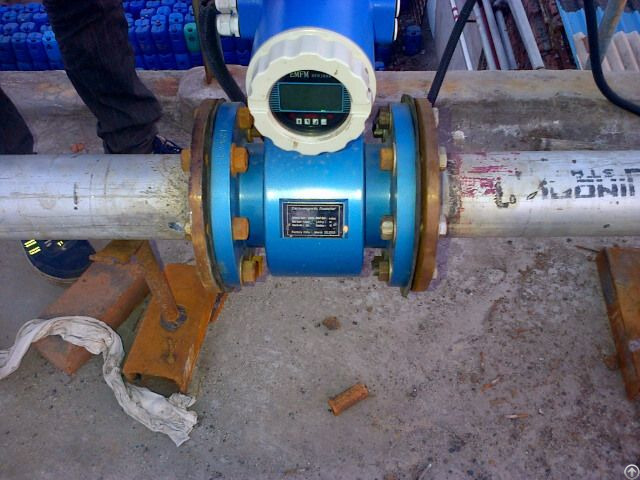

Battery Operated Magnetic Flow Meter - China

Principle

The method of measurement is based on Faraday's law of electromagnetic induction.

When the conductive liquid moves within the magnetic field, voltage is induced in it, which is proportional to the velocity of the conductor.

The equation is as below:

E=KBVD

K: Coefficient of the flowmeter

B: Pulsed magnetic flux density

V: Average velocity of the media

D: Inner diameter of the measuring pipe

When measuring flow, fluid flow through the perpendicular to the direction of the flow field, the liquid flow conductivity induction out a and average flow velocity( volume flow) proportional to the voltage signal, the inductive voltage signal through the two and liquid direct contact with the electrodes of detection, and through the cable, and then sent to amplifier output current signal conversion unity.

Features

• No moving parts in the measuring pipe to facilitate maintenance and management

• No obstacle parts, no pressure loss, sensor with long service life

• Conductivity of measured liquid can reach at least 5 us/cm

• Various liner and electrode materials satisfy most industrial applications

• High accuracy, generally ±0.5%, ±0.3% and ±0.2%

• F46 Liner is suitable for vacuum tube

Specification

Medium Conductivity: >5us/cm

Size: DN3-3000

Measuring Range: 0.2-15m/s max

Measuring Tube material: Stainless Steel 304

Flange material: Carbon steel(standard)/Stainless Steel 304/316(optional)

Coil Housing: Carbon steel(standard)/Stainless Steel304/316(optional)


Nominal Pressure: 0.6Mpa/1.0Mpa/1 - 6Mpa/2.5Mpa/4.0Mpa/Custom ized

Liner: PTFE/Neoprene/Hard Rubber/F46/PFA/Polyuretha ne

Electrode&Groundin g: SS316L/Hastelloy B/Hastelloy C/Titanium/Tantalum/Plati num

Process Connection: Flange

Flange type: JIS/ANSI/DIN or other customized

Ambient Temperature: -25 to +60 oC

Accuracy: ±0.5%(standa rd);±0.3%/±0.2%(Customi zed)

Power supply: AC85-250V/DC20-36V

Output: 4-20mA, Pulse, RS485 Modbus(standard)/HART, Profibus(optional)

Alarm: Empty Pipe, Excitation, Upper & Lower Limit

Display: Three lines

Cable Entry: M20*1.5(standard)/: 1/2"NPT(optional)

Ex-proof: Exmd II T4

Protection: IP65(standa rd)/IP67 IP68(optional)
