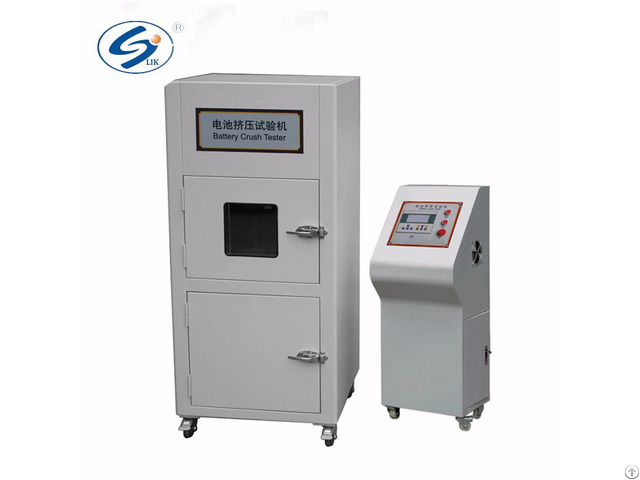

Battery Crushing And Squeezing Test Machine - China

Application Through the extrusion test, The machine use for testing the safety performance through the extrusion/crushing/squeez ing test.

After testing, the battery should not catch fire, smoke or explode.

It is also an essential testing device for every battery manufacturer and Research Institute.

Features(Power Battery Crushing And Squeezing Test Equipment for safety performance) 1 - The wire enclosed with metal fire-proof cover, which is available to prevent the flame during testing process.

2 - Lighting system is designed to observe the internal testing process; The inner box materials are resistance combustible materials.

3 - Crush Force controllable within range from 250N to 13KN, meet different standards; 4 - The time can be set, the precision is higher, and the maximum force can be displayed directly.

5 - Be equipped with the exhaust air vent (it is convenient for customers to discharge the odor produced in the battery test to the outside of the laboratory).

6 - Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety and Easy operation.

7 - Double-layer explosion-proof glass window and explosion-proof chamber.

Specification(Power Battery Crushing And Squeezing Test Equipment for safety performance) Product Model LJ-832

Force Range 1~20KN(13KN standard)Adjustable, customized)

Tester Architecture Free Stand & Vertical extrusion

Power Supply 380V/50HZ 10A

Force Deviation ≤±1% Full-scale Range

Unit conversion Kg/N/Lb

Extrusion speed 0.1~ 900mm/min(adjustable)

Extrusion speed Accuracy ≤±1% Crushing Travel 300mm

Test space W300 X D300 X H200mm

Observation window size 200 X 200mm(10mm thickness Double layer explosion-proof glass)

Overall Dimension W680 X D570 X H1740mm

Sensor resolution 1/100000

Pressure display precision ±1.0kg Exhaust fan Diameter 120mm (Back side of the chamber is equipped with an exhaust fan)

Air feeding hole Two 50mm holes on the left side of the chamber

(which also can be used to measure voltage and so on.

Lighting The top of the chamber is equipped with a light lamp

Total Power 4KW

Controller PLC automatic control, the man-machine interface presupposes various working modes, and the operation is simple and convenient.

(Touch Screen optional)

Crushing Time Maintaining 0~99 Hours 99 Minutes & 99 seconds, time can be controllable to control the deformation and stop if test fulfilled.

Driven Method Hydraulic

Auxiliary Function Explosion-proof Pressure Release System, Exhaust System, fire-extinguish device

Stucture Inner chamber: stainless steel plate

Outside of chamber: cold rolled plate with painting.

Pressure display: pressure sensor

Wheels: There are 4 Movable universal wheels in the bottom of chamber

Door: double layer door, flat handle, explosion-proof glass window.

Machine Weight Estimate 200kg

Working environment Allowed working environment: 0 ~ 35ºC

Performance assurance environment: 5 ~ 28ºC

The space between the equipment and the wall and the surroundings must ≥ 1500mm.

Using suggestion Placing the equipment close to the window will be convenient to discharge the odor produced in the test outside.

Do not put flammable and explosive things around the equipment.

Equipment and related accessories should be maintained regularly

Customized service Welcome to Non-standard, Specail requirements, OEM/ODM orders.
