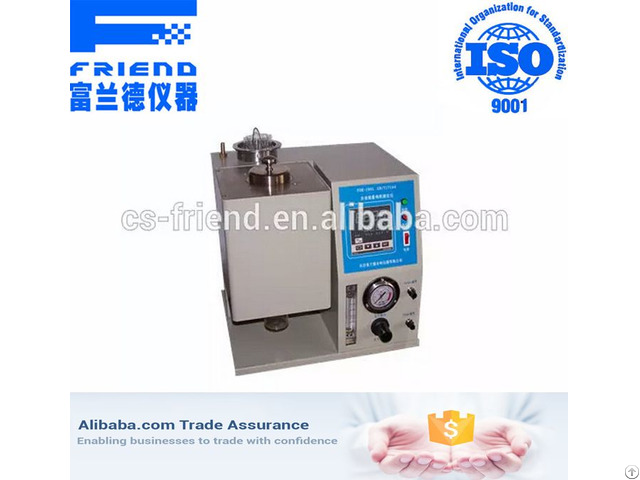

Automatic Trace Carbon Residue Analyzer - China

Scope

Automatic trace carbon residue analyzer is in accordance with GB / T 17144, ISO 10370 and ASTM D4530 technical requirements of petroleum products manufactured automated test equipment.

Automatic trace carbon residue analyzer which measures the range of carbon residue is 0.10% (m / m) ~ 30.0% (m / m).

The measurement results of the carbon residue value of more than 0.10% (m / m) of petroleum products of the tester and Conradson Carbon method (GB / T 268) equivalent measurement results.

Automatic trace carbon residue tester is also applicable to the determination of carbon residue of less than 0.10% (m / m), the composition of the distillate petroleum products.

For such products, the preparation of 10% (V / V) distillation residue first with GB / T 6536 method, and then use the automatic trace carbon residue analyzer measured.

Features

1, the automatic trace carbon residue analyzer with the program automatic temperature control, automatic thermostat system

2, automatic trace carbon residue tester with automatic switching traffic, convenient

3, automatic trace carbon residue tester uses one-button operation, the entire testing process can be fully automated

4, automatic trace carbon residue analyzer uses saver, abnormal behavior during the test as well as ultra-high temperature in the furnace after the instrument will automatically stop and alarm

5, automatic trace carbon residue analyzer uses a stainless steel airway exhaust gas emissions, low-carbon, environmentally friendly

6, automatic trace carbon residue analyzer using the hint system, automatic alarm when the end of the experiment

Technical Parameters

1, the combustion chamber temperature range: room temperature ~ 500 ℃

2, the combustion chamber temperature accuracy: 500 ℃ ± 2.0 ℃; thermostat 15min

3, set the time error: <0.1S

4, the pressure adjustment range: 0 kPa (0 kg / cm2) ~ 392 kPa (4kg / cm2);

5, the flow adjustment range: 100 ml / min ~ 1000 ml / min; 150 ml / min and 600 ml / min automatic switching;

6, the heater power: 1000W

7, temperature control mode: digital temperature controller program
