Automatic Bitumen Softening Point Tester - China

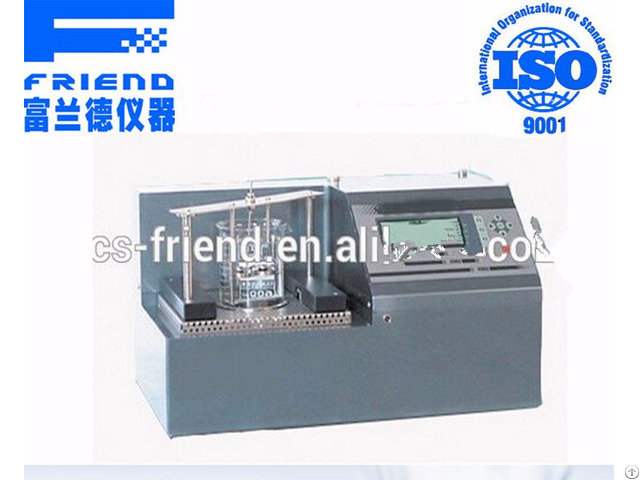

FDL-0171 Automatic Bitumen Softening Point Tester

Scope

Automatic Bitumen Softening Point Tester is designed and made as per the National Standard GB/T4507 “Test Methods for Softening Point of Asphalt” andT0606 “Asphalt Softening Point Test (Ring and Ball Methods)” in the Industry Standard JTJ052 -

It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and other asphalts.

It is the desired instrument for asphalt manufacturing companies, highway and bridge construction companies, colleges and universities, scientific research institutes.

Features

1 - It uses liquid crystal display, English operation interface

2 - It adopts SCM automatic control experiment without human duty

3 - It can detect changes in various parameters, photoelectric detection results

4 - It has a self-diagnostic function, suggesting operating functions

Technical Parameters

1 - Power supply voltage: AC 220V 50Hz;

2 - Measuring range: specimens softening point below 80 °C, with distilled water heating medium +5 ° C to +80 °C; sample softening point above 80 °C, with glycerol as heating medium, from +32 ° ~~ +160 °C;

3 - Temperature Resolution: 0.01 °C;

4 - Agitator: stirring speed continuously adjustable;

5 - Heating rate: automatically after three minutes was adjusted to 5.0 ± 0.5 °C / min;

6 - Softening point: the LCD and the printer prints;

7 - Computer interfaces: RS-232C communication interface;

8 - Environmental conditions: room temperature less than 35°C and relatively stable free air convection phenomenon;

9 - Relative humidity: 85%;

10 - Total power consumption: not more than 700W.

11 - Size: 360*280*490
