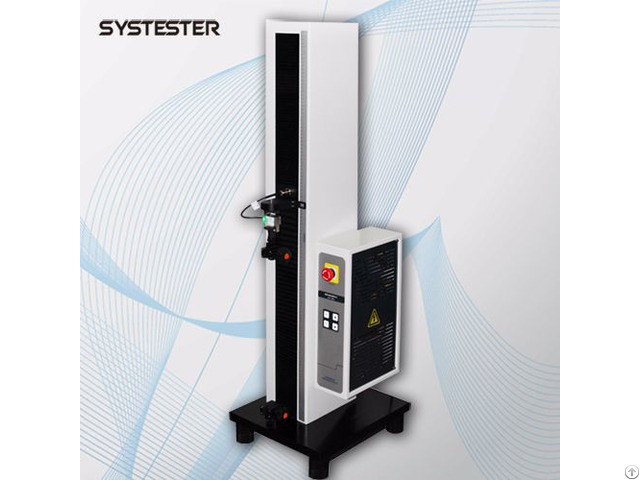

Auto Computer Control Tensile Tester Sealing Force And Puncture Strength Testing Machine - China

Auto Tensile Tester is suitable for various mechanical properties test like break force, elastic modulus, elongation, seal strength, T-style peeling force and strength tester, 90/180 peeling force and strength tester and so on.

Testing materials:

Plastic films, sheets, adhesive tapes, rubber, paper, medical patches, release paper, non-woven fabrics, aluminum foils, laminated films etc testing of various item.

Auto computer control tensile tester, sealing force and puncture strength testing machine Standards:

ASTM D882, ASTM D828, ASTM E4, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T2358, QB/T 1130…….

Auto computer control tensile tester, sealing force and puncture strength testing machine Main feature:

1: 3 patents and 2 counts of software copyright registration.

2: Bilingually controlled by computer and embedded system.

3: Highly accurate load cell, Bi-direction test.

4: High performance servo drive.

5: Test speed can be preset freely through software.

6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.

7: Silence running, < 25db@1000.

8: ISO, ASTM standards test available and non-standard test available.

9: Electronic limit, computer preset, non-mechanical limit.

10: Overload protection, less power consumption.

11: DB9 RS232 communication port .

12: Tensilyst workstation support.

13: Tensile, break force, elastic modulus, seal strength, 90 peeling strength, 180 peeling strength test available.

14: Historical data traceable, system log.

Auto computer control tensile tester, sealing force and puncture strength testing machine Technical indexes:

Load cell range 5N, 50N, 100N, 250N, 500N, 1000N, 1500N(personal customization available)

Accuracy Better than 0.5

Displacement resolution 0.001mm

Test speed 0.01~1000mm/min

Travel distance 1100mm

Sample width 38mm customization

Sample thickness 8mm customization

Dimension 380mm(L) *450mm(B) * 1309mm(H)

Power supply AC 110V 60Hz

Net wight 92KG
