Astm Mechanically Contact Measuring Method Of Film Thickness Meter - China
price: 100.00 Dollar US$

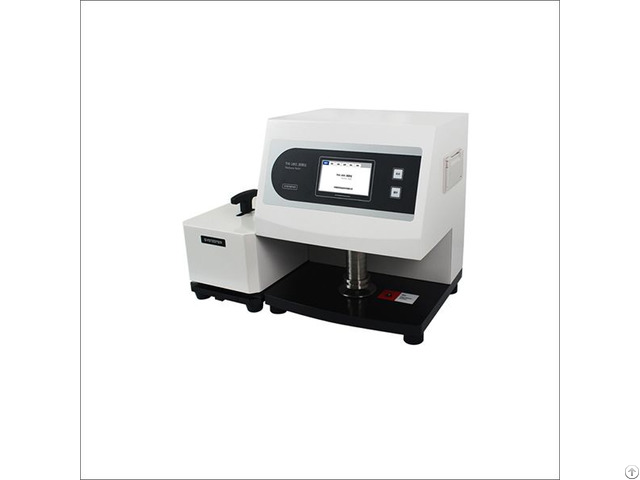

ASTM Mechanically Contact Measuring Method of Film Thickness Meter Product Details Application: This thickness tester is based on contacting method and designed to precisely measure thickness of plastic films, aluminum foil, aluminized films, plastic composite films, paper-plastic composite films, coextruded films, aluminum foil composite films and many others.
ASTM Mechanically Contact Measuring Method of Film Thickness Meter Features 1 - Embedded system control, patent technology.
2 - Touch screen operation.
3 - Real color TFT LCD display.
4 - Max, Min, Aver, SD result display.
5 - Manual test and automatic test.
6 - Multiple ranges selectable.
7 - Micro-printer prints mini-report.
8 - Result with multiple units display.
9 - Sample auto feeder available.
(optional) 10 - Traceable standard block calibration.
11 - RS-232 communication port.
12 - Professional computer software support.
(optional) ASTM Mechanically Contact Measuring Method of Film Thickness Meter Technical Indexes: Range 0-2mm (standard)
Resolution 0.1um
Test speed 15times/min ( Adjustable)
For film Test area
Test pressure 17.5±1kPa
For paper Test area Test pressure 50±1kPa
Power supply AC220V 50Hz
Dimension 330mm (L) X 285mm (W) X 370mm (H)
Net weight 38kg
Company Contact:
- Posted By: SYSTESTER Instruments Co.,Ltd
- Phone: 18765316730
- Address: Meili Road, Jinan , Shandong , China
- Email:
- Website: https://www.systester.com
Published date: July 22, 2019
- Business Description: SYSTESTER Instruments Co., Ltd is a leading manufacturer of package testing instruments and have over 20 years experience.
SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.
SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities.
SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
