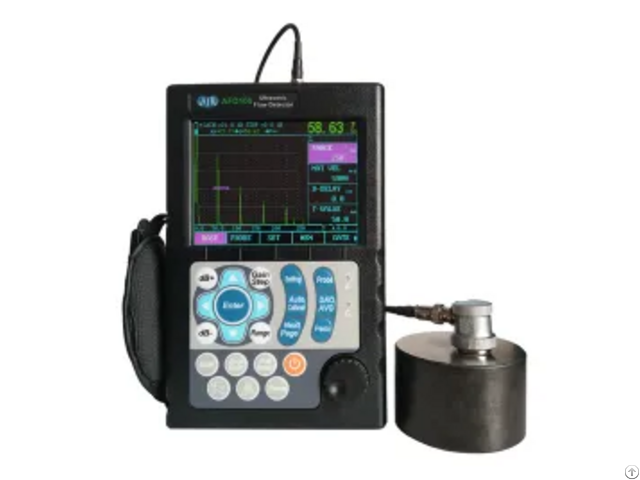

Ajr Ultrasonic Flaw Detector - China

ultrasonic flaw detector

Introduction

It can be used in a lab or field.

The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc.

This machine is also used broadly in the active safety inspection and service-life evaluation such as aerospace, railway transportation and boiler pressure vessels, etc.

It is an essential instrument for non-destructive inspection industry.

Features

Automated calibration、Automated gain

DAC, AVG, TCG, B Scan, AWS

High-speed capture and very low noise

High contrast viewing of the waveform from bright

Powerful PC software and reports can be export to excel

Function

● Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)；

● Automated switch three staff gauge ((Depth d, level p, distance s)；

● Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；

● Convenient to make and use DAC \ TCG and AVG to evaluate the echo, the curve can be modified and compensated

● 6dB DAC functions;

● 500 independence setup, any criterion can be input freely, we can work in the scene without test block；

● Big memory of 500 A graph

● Automated gain and gain scan;

● Peak Hold and Peak Memory；

● B scan;

● AWS D1.1;

● Automated make video of test process and play; use upan, the length of video is unlimited.

● Powerful pc software and reports can be export to excel;

● Lithium battery, continue working time up to 12 hours;

● The embeded software can be online updated;

Other Assistant Function

● Display freeze;

● Automated echo degree;

● Angles and K-value;

● Lock and unlock function of system parameters;

● Electronic clock calendar ;

● Two gates setting and alarm indication;

● Gate and DAC alarm;

Specification

Measuring Range (mm) 0 - 6000

Channels 500

Frequency Range (MHz) 0.5 - 10

Material Velocity (m/s) 1000 - 16000

Vertical Linearity Error ≤3%

Horizontal Linearity Error ≤0.1%

Sensitivity Leavings ≥62dB

Dynamic range ≥32dB

Resolving Power ≥36dB

Gain (dB) 0 - 110

Measurement Mode Single、Dual、Thru

Reject 0~80%

Pulse Displacement (μs) -20 - +3400

Zero (μs) 0.0 - 99.99

Lithium Battery 5600mAh, 7.4v

Connector Type BNC or Lemo 01

Operating Temperature (℃) -20 - +50

H×W×D (mm) 240×156×48

Weight (kg) 1.0(with battery)

For many years, AJR was the leading manufacturer of ultrasonic flaw detectors.

We have a standard production workshop and a complete production team.

They always produce a serious and responsible attitude to produce each product.

Our R&D team is made up of multi-aspects professional engineers such as design engineer, technology specialist, qualified specialist and process control manager, etc.

Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
