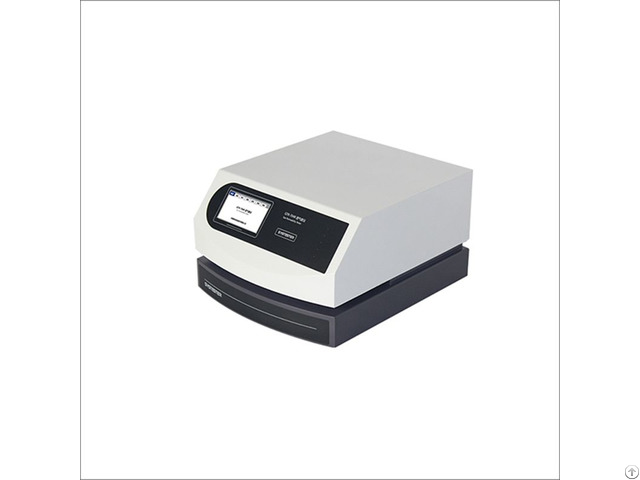

Air Permeability Testing Machine Gurley Method Of Battery Separation Film - China
price: 100.00 Dollar US$
Air Permeability Testing Machine Gurley Method Of Battery Separation Film Product Detail Application: GTR is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.
Air Permeability Testing Machine Gurley Method Of Battery Separation Film Features: Ÿ Vacuum differential pressure method Ÿ Patent technology Ÿ 3 specimens test simultaneously and independently Ÿ Computer control Ÿ One-button test, test automatically through whole process Ÿ High accuracy vacuum sensors embedded in Ÿ 3 Chambers with independent temperature sensor Ÿ Test under various RH conditions with Humidity generator (optional) Ÿ Environment temperature and humidity sensor inside Ÿ Permeability coefficient, solubility coefficient and diffusion coefficient test Ÿ Chambers with water bath temperature control technology Ÿ Unit based on embedded system, 24bit Δ-Σ AD Ÿ Multiple test modes optional Ÿ Data curves display Ÿ Traceable reference film calibration Ÿ Supports DSM system (DSM, lab data management system) Air Permeability Testing Machine Gurley Method Of Battery Separation Film Technical Indexes: Test range 0.01 - 190, 000 cm3/m2·24h·0.1MPa (Standard)
Resolution 0.001cm3/m2·24h·0.1MPa
Samples 3, independent
Vacuum accuracy 0.1Pa
Temperature range 5C - 95C
Temperature accuracy ±0.1C
Humidity range 0%RH, 35%RH-90%RH, 100%RH (optional)
Humidity accuracy ±1%RH (optional)
Sample thickness less 5mm
Sample size >= 150mm * 94mm Test area 48cm2
Test gas O2, N2, CO2, He, etc
Differential pressure -0.1MPa - 0.1MPa Gas interface Ф8mm
Dimension 730mm * 510mm * 350mm
Power supply AC 220V 50Hz
Net wt.
63kg
Company Contact:
- Posted By: SYSTESTER Instruments Co.,Ltd
- Phone: 18765316730
- Address: Meili Road, Jinan , Shandong , China
- Email:
- Website: https://www.systester.com
Published date: October 10, 2019
- Business Description: SYSTESTER Instruments Co., Ltd is a leading manufacturer of package testing instruments and have over 20 years experience.
SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.
SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities.
SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
