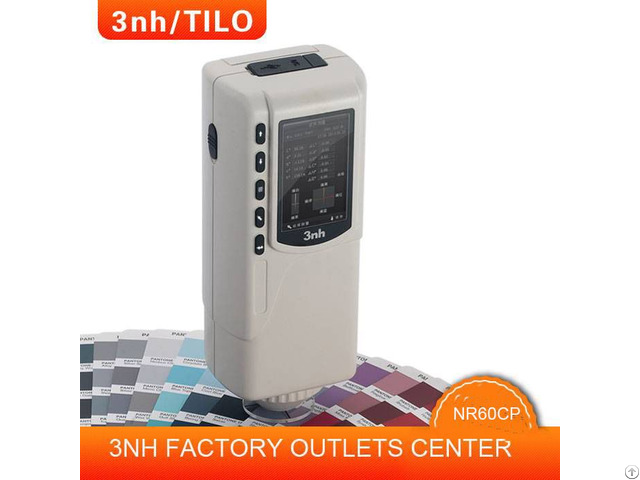

3nh Nr60cp Cheap Colorimeter Color Analyzer Equal To Cr 10 Plus - China

NR60CP colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.

It not only can precisely measure many kind of color indexes in many color spaces, but also it is easy to use with powerful functions.

The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

Features : 8mm and 4mm double aperture for switch, easy to measure concave sample in large plane

More stable and accuracy, Delta E ab<0.03

Many color spaces, many color indexes, extensive applicability

Double locating: illuminating locating and cross locating

Equipped with rechargeable high-capacity li-ion battery

Built-in white plate parameters, and configuration of physical whiteboard, easy to operate;

New integrating sphere optical path design, more stable to measure;

Double apertures measurement data can pass SCM metrological certification; Specification : Model NR60CP

Illuminating/Viewing Geometry 8° / d; CI E No.

15, GB/ T 3978

Light Source LED sources

Sensor Silicon photodiode array

Measuring Aperture Φ8mm large area end-face; Φ4mm small area concave-convex end-face

Color Space CI E L AB, XYZ, LCh, CI E RGB, CI E LUV

Other Chromaticity Data WI ( E313, CI E, AATCC, Hunt er ), YI ( D1925, 313), Color Fastness, Staining Fastness, J PC79, BFD( 1 - 5: 1), FMCI I

Observer CI E 10°

Illuminant D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12

Display Data Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Measurement Time 0 - 4s

Repeatability ΔE* ab 0 - 03(Average of 30 measurement of standard white plate within 5s)

Errors between each instrument within Delta E*ab 0.2

Dimension (L*W*H)205*67*80mm

Weight 500g

Battery rechargeable lithium-ion battery 3 - 7V @ 3200mAh

Lamp Life 5 years, more than 1.6 million measurements

Display Screen TFT 2.8 inch(16: 9)

Interface USB/RS-232

Data Memory 100 Standards, 20000 Samples

Operating Temperature 0~40ºC(32~104°F)

Storage temperature -20~50ºC(-4~122°F)

Optional Accessory miniature thermal printer, powder test box Shenzhen 3nh Technology Co., Ltd
