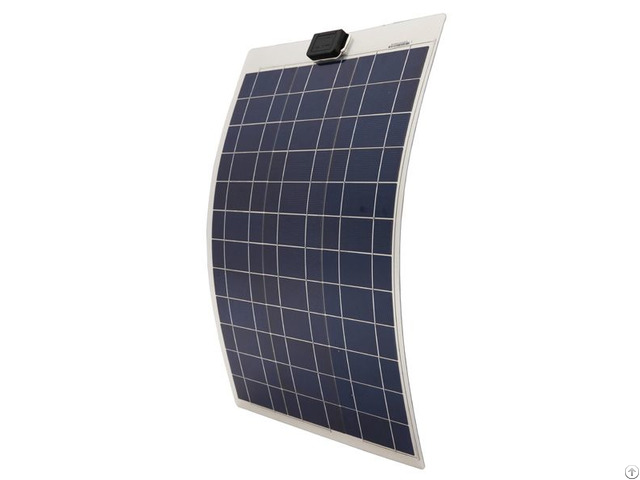

Waterproof 50w 12v Semi Flexible Poly Solar Panel With 1 4m Cables - China
price: contact company for price
The Eco-sources series of semi-flexible solar panel got an impermeable lamination coat the entire module, allowing it to contour and flex against curved areas, eliminating any need for custom mounts.
It’s high conversion efficiencies, easy installation and hand.
The thin, lightweight module can also be affixed to or sewn into the canvas, including bimini tops.
Semi-flexible solar panels provide greater power efficiency than a traditional model.
Suitable for car batteries, car, RV, boat, ship, aircraft, satellites, space stations, outdoor breeding, planting, tourism, solar street lamp.
Features
1 - Suitable for marine use: the laminate coating on the exterior of the panel makes it impervious to saltwater splashing, rain, and other weather elements.
2 - Completely waterproof Junction box.
sealed and waterproof junction box and makes it waterproof.
3 - Lightweight: 82% lighter than aluminum glass solar modules.
4 - Durable surface is less than 1/8″ / 2.5mm thick.
5 - Quick Connectors: 1.4 meters of flex fitted with S-S connectors for quick and easy setup.
6 - 1-year material warranty.
Specification
Rated Power 50W
Vm(V) 18V
Im(A) 2.78A
Voc(V) 22V
Isc(A) 3A
Module Size (MM) Poly: 767*506*2.5 (30.3.1*20*1/8″ )
Number of cell 36
Cell Dimension (mm) 125
Maximum system voltage (V) 1000
Temperature coefficients of Isc (%) +0.1%/℃
Temperature coefficients of Voc (%) -0.38%/℃
Temperature coefficients of Pm (%) -0.47%/℃
Temperature coefficients of Im (%) +0.1%/℃
Temperature coefficients of Vm (%) -0.38%/℃
Temperature Range -40℃ —85℃
Junction Box Type PPO, black
Length of Cables (mm) 750
Cell Efficiency (%) ≥18.0%
Output tolerance (%) ± 3%
Backsheet Aluminum substrate
Encapsulation PET
Standard Test Conditions AM1.5 100MW/c㎡ 25℃
Net Weight 1.85kgs(4.1lbs)
Application
These semi-flexible solar panels are ideal for Boats/Sailboats, Yachts, Marine applications Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication sites.
Company Contact:
- Posted By: Xiamen Eco-Sources Technology Co. Ltd
- Phone: 86-592-3109858
- Address: Room 401, Hongye Building, Innovation Park, Xiamen , Fujian , China
- Email:
- Website: https://www.eco-sources.com/
Published date: August 8, 2018
- Business Description: Eco-Sources is one of the leading renewable energy products manufacturers, We specialize in off-grid solar & wind power system and components such as solar panels, wind turbines, batteries, inverters, charge controllers and solar trackers, also include solar appliances like solar water pump, solar street light etc.
We have been integrating R&D, mass production, sale and service under one roof, to provide customers with high-quality products since 2007 - With more than 10 years of experience in this field and through our hard work, we have got utility model patent certificates for solar controller and solar hat.
We insist on a management theory of customer service is the core to unceasingly improve our core competitiveness.
We acquired advanced equipment from China and abroad, such as dust-free purification plant, automatic laminating machines, sophisticated IPQC and FQC testing machines.
Meanwhile, we absorb in domestic and overseas technicians actively and scientific management mode constantly, thus we keep improving and innovating.
All our efforts enable our product quality to stable and reliable.
Now our products are exported to Africa, Europe, the US, the Middle East and Asia.
ECO-Sources is dedicated to providing sustainable and clean energies for our clients and making contribution to environmental protection.
Our Products:
- eco sources 160w 12v monocrystalline solar panel
- 100w 12v monocrystalline solar panel for pv systems
- 100w polycrystalline solar panel for rvs boats and 12v systems
- 25w 12 volt polycrystalline photovoltaic pv solar panel module
- 10w 12 volt polycrystalline solar panel with high efficiency cells
