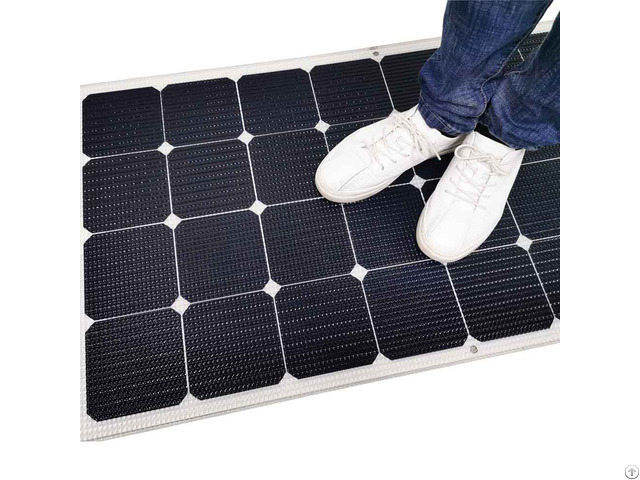

Walk On 110w Semi Flexible Solar Panel Anti Slippery Rough Etfe For Marine Riverside Boat Yacht - China
price: 148.00 Dollar US$
Thank you for the interests in walkable solar panel 110w anti slippery surface rough ETFE from Japan for marine riverside boat yacht Advantage The eMarvel light marine solar panel uses top quality material and tested in inner lab, under actual sunshine, test in our factory machine, and in the 3rd party laboratory.
Now this light marine solar panel can bend a slightly angle, they are approved by CE, ROHS, SGS, certified under IEC standard.
AHONY uses high efficiency cell over 21.3% monocrystalline or back contact cells Gen III over 22.6%.
We offer a wide ranges of customize service, OEM, ODM, automatically producing line insures better workmanship, faster delivery and more stable quality.
*Walkable and Anti-slippery
*Longer lifespan 15years guaranteed
*High temp resistance and little power loss
*Rigid, thin, light design for widely use
Solar cells can be:
Back contact cell;
Monocrystalline solar cell
Polycrystalline solar cell Product Description Model No.
eMarvel 110w Feature solar panel can walk on step on with rough surface anti slippery Product Name walkable solar panel 110w anti slippery surface rough ETFE from Japan for marine riverside boat yacht
Maximum Power[Wp] 110
Solar Cell SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs] 4*8
Cell Efficiency 22.60%
Size[mm] 550*1090*5
Max Power Voltage Vmp[V] 18.56
Max Power Current Imp[A] 5.93
Open Circuit Voltage Voc[V] 21.90
Short Circuit Current Isc[A] 6.40
Net.
Weight[kg] 5
Power tolerance[%] ±5%
NOCT[℃] 45±2
Operating Temperature[℃] -40/+85
Temperature Coefficient Pmax[%/K] -0.3
Temperature Coefficient Voc[[%/K] -1.74mV
Temperature Coefficient Isc[[%/K] 0.05
Maximum System Voltage[V] 100 V
Maximum Reverse Current[V] 10A
Flame retardancy UL94 VTM-0
Certification and test CE, ROHS, SGS, IEC, 85°C& 85% humidity test
Maximum bend radius(θ) 5°
Cables and Connectors APJB010, 2m dual cores cable 2.5mm2 bare at end
Standard Test Conditions STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes round corner R10, with installation hole
