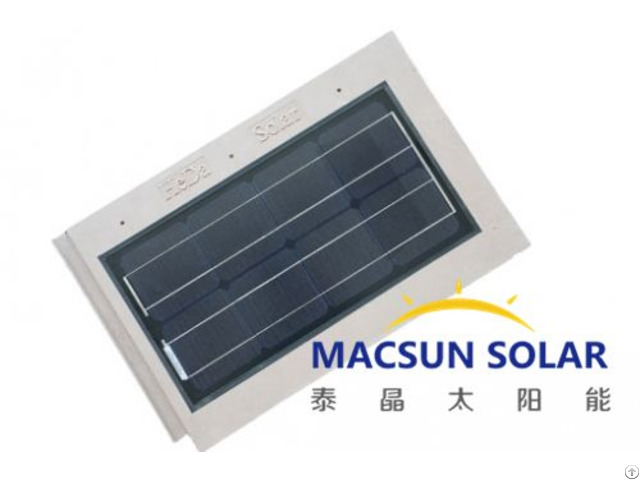

Solar Tiles Ms St50t - China
price: 1.90 Dollar US$
Electrical Characteristics
All specified parameters at STC 25℃
Ambient, 1000w/m² irradiance and AM 1.5
Max-Power Pm(w) 50
Power Tolerance (w) ±3% Open-circuit voltage(V)-Voc: 7.48
Short circuit current(A)-ISC: 8.57
Max-Power Voltage Vm (V): 6.23
Max-Power Current Im (A) ; 8.03
Cell Efficiency (%): 18.50% Mechanical Characteristics
Cable type, diameter and length4mm², 700mm
Number, type and arrangement of cells 12
Cell size (mm) 156×156
Dimension (mm) 1055×420×26
Weight (kgs ): 6Kg±0.2Kg Material frame: Aluminium
Glass, type, and Thickness: high transmission, Low Irin, tempered glass 3.2mm
Compression strengly: >2400pa
Water seepage performance: <0.5%
