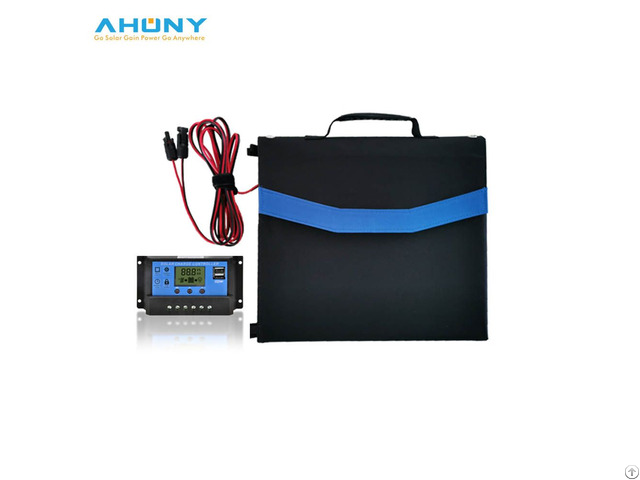

Polular 160w Foldable Solar Charging Bag Blanket For Generator Lithium Battery - China

HIGH CONVERSION EFFICIENCY: Constructed form high-efficiency monocrystalline solar cells, convert solar power into usable energy, up to 21%-23% efficiency.

3-PORT SMART CHARGING AND MC4: Equipped with USB port 5V/2.1A(max) and DC port 18V/5.0A(max), the smart IC chip built into the USB port intelligently identifies your device, and maximizes its charging speed while protecting your device from overcharging.

Also with a MC4 connector cable output(18V/5.5A max), you can connect to a portable solar generator for charging, or connect to a solar controller(not included) to charge your other 12-volt battery.

FOLDABLE DESIGN: Ultra compact small size.

It comes with a handle and can be folded for easy to carry, and can either choose legs lanyards for easy installation or adjust the angle to the sunlight.

customer can choose with supporting leg or not.

HIGHLY DURABLE: Industrial-strength PET polymer faced solar panels sewn into a durable polyester canvas offer weather-resistant outdoor durability, great for any outdoor activities such as camping, climbing, hiking, picnic.

POWERFUL AND PORTABLE: This solar panel packs 160W of power yet is only 1 inch thick and weighs only3kg, making it easier to transport, hang, and remove.

Model No.

eMobi F8*20w Product description High quality 160w foldable solar charging bag blanket portable a grade mono cell for charging solar generator lithium battery

Product Name 12V folding solar kits

Maximum Power[Wp] 160

Solar Cell Mono PERC A Grade Solar Cell

Cell Efficiency 21.30%

Folded Size[mm] 400*360*80

Open Size[mm] 1440*800*4

Max Power Voltage Vmp[V] 20.38

Max Power Current Imp[A] 7.85

Open Circuit Voltage Voc[V] 24.05

Short Circuit Current Isc[A] 8.48

Net.

Weight[kg] 3.5

NOCT[℃] 45±2

Operating Temperature[℃] -40/+85

Temperature Coefficient Pmax[%/℃] -0.4

Temperature Coefficient Voc[[mV/℃] -2mV

Temperature Coefficient Isc[mA/℃] 0.037

Maximum System Voltage[V] 100 V

Certification CE ROHS

Suface/backsheet PET+FR4 fibreglass

Charge controller PWM 10A 12/24V, 2 USB, LCD display

Cables 5m 14AWG cable

Connector MC 4+battery clips

Supporting Leg No
