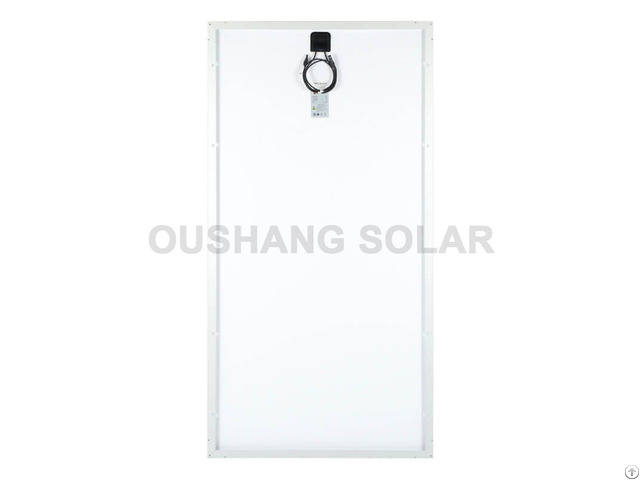

Os M72 300w 350w Monocrystalline Photovoltaic Module - China

OS-M72-300W~350W Monocrystalline Photovoltaic Module monocrystalline solar panel supplier 72 cells solar panel Description

Key Parameters

Cell Mono

No.

of cells 72

Rated Maximum Power (Pmax) 300W~350W

Junction Box IP67

Maximum System Voltage 1000V DC

Operating Temperature -40℃～+85℃

Connectors MC4

The factory has more than 7 years solar panel production experience.

We shipped thousands of containers of solar panels to all over the world.

All the panels are working well under different circumstance globally since our quality control strictly follows ISO9001 standard.

9BB, MBB are both available.

Size 156, 166 and 182 cells are all available.

Our factory is able to do OEM and ODM.

We can make the solar panels to meet customers' requirement.

Specifications and Details

Model OS-M72-300 OS-M72-330 OS-M72-350

Cell MONO MONO MONO

Max Power 300W 330W 350W

Max Power Voltage 36V 37.8V 37.8V

Max Power Current 8.33A 8.73A 9.25A

Open Circuit Voltage 43.2V 44.5V 45.6V

Short Circuit Current 8.83A 9.40A 9.71A

Number of Cells 72(6*12) 72(6*12) 72(6*12)

Size of Cells (mm) 156*156 156*156 156*156

Dimensions(mm) 1955*992*35 1955*992*35 1955*992*35

Maximum system voltage 1000VDC

Junction Box Protection IP67

Cables 4mm2

Connector MC4

Max wind load 2400Pa

Max snow load 5400Pa

Operating Temperature -40℃~+85℃

Power Tolerance ±3% OS SOLAR is a leading solar panel suppliers in china.

Its hot selling products include: 72 cells solar panel, 60 cells solar panel, 36 cells solar panel, and provide customized solar panel.

the factory has strict quality control, please contact us!

Company Contact:

• Posted By: Hebei Oushang Photovoltaic Technology Co., Ltd

• Phone: 8619930586507

• Address: The Northwest Corner Of Dazhao Village, Hequ Town, Xingtai , Hebei , China

• Email:

• Website: https://www.oushangsolar.com/

• Business Description: Hebei Oushang Photovoltaic Technology Co., Ltd. is one of top photovoltaic module manufacturer in China and has annual production capacity of 500MW.

  Our factory is located in Hebei Province, China and covers 50000 square meters land.

  OUSHANG SOLAR has engaged in R&D, production and sales of solar module products many years.

  The power range of our solar panels is from 5W to 550W.

  Products cover monocrystalline solar panel, polycrystalline solar panel, half cell solar modules, solar controller, solar inverter, solar gel battery, solar flood light, solar street light, solar monitor system and etc.

  We offer OEM service.

  There is the advanced automatic production line in our factory.

  We use strict production technology and quality control system to ensure the quality of manufactured products perfect.

  The quality inspection follows ISO9001 standard.

  The solar module products of our company have passed the TUV, SGS, CE, SONCAP, CQC test.

  Our factory has passed the Intertek inspection.

  Our reliable solar panels have been proven to perform in diverse climates and environments all over the world under the sun.

  More than 20GW has shipped to Africa, Europe, Middle America, Middle East, Southeast Asian.

  OUSHANG SOLAR is one of top photovoltaic module manufacturer in China and has annual production capacity of 500MW.

  Our solar panel products range is from 5W to 500W.

  Products cover monocrystalline solar panel, polycrystalline solar panel, half cell solar modules, solar controller, solar inverter, solar gel battery, solar flood light, solar street light, solar monitor
